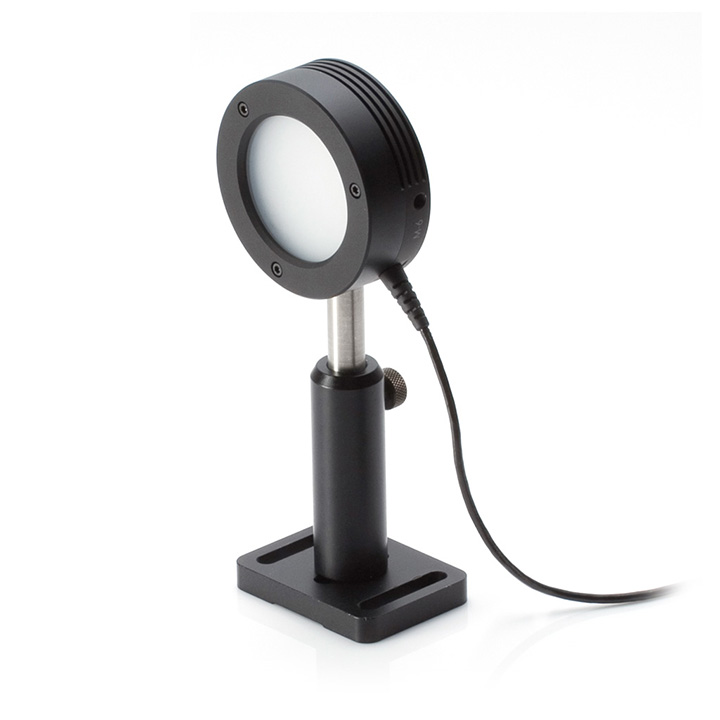

Coherent J-50MB-IR Energy Sensor

Updated:2024-11-21

Brand: Coherent
Model: J-50MB-IR
Description: The J-50MB-IR energy sensor is specifically design for high energy and high peak power Erbium and Holmium medical lasers. This sensor is like the J-50MB-YAG, but is designed to operate further in the
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent J-50MB-IR Energy Sensor Description：

Datasheet

The J-50MB-IR energy sensor is specifically design for high energy and high peak power Erbium and Holmium medical lasers. This sensor is like the J-50MB-YAG, but is designed to operate further in the infrared.

This sensor is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.

A USB-direct (PN 1191440) model is available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with MaxBlack coating and diffuser for measuring laser pulses from 1 mJ to 3J at up to 30 pps.

Key Features:

500 nm to 3.0 µm spectral range

50 mm diameter active area

1 mJ to 3J energy range

30 pps repetition rate operation

ISO 17025 accredited

Specifications

Cable Type

J DB-25

Active Area Diameter

50 mm

Detector Coating

MaxBlack

Energy Range

1 mJ-3J

Wavelength Range

500 nm to 3 µm

Noise Equivalent Energy

<100 µJ

Maximum Average Power (watts)

Maximum Pulse Width (microseconds)

1000

Maximum Energy Density (millijoules per square centimeter)

260 (@ 248 nm, 10 ns)

Diffuser

Calibration Uncertainty (%)(k=2)

±3

Energy Linearity (%)

±3

Calibration Wavelength (nanometers)

248

Cable Length (meters)

2.5

Maximum Beam Size (millimeters)
