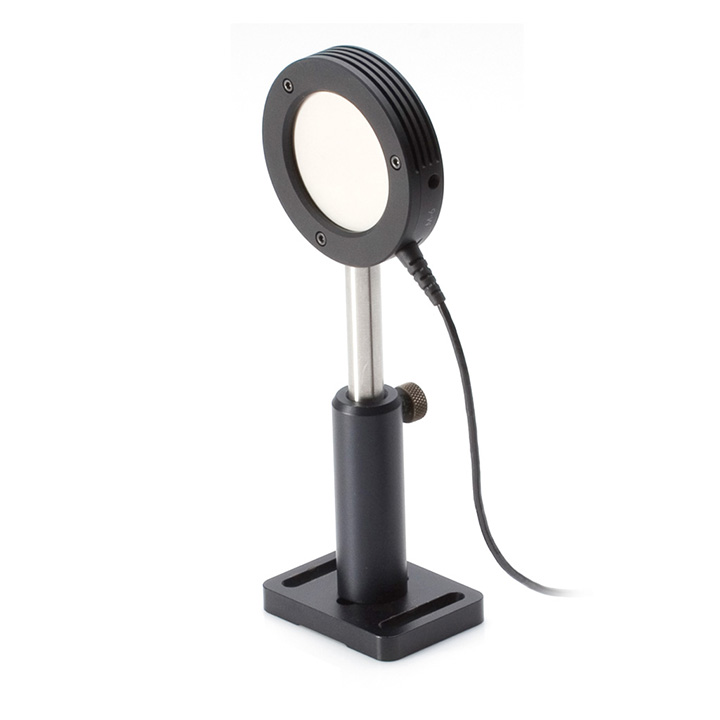

Coherent J-50MUV-248 w/o Diffuser Energy Sensor

Updated:2024-11-25

Brand: Coherent
Model: J-50MUV-248
Description: This J-50MUV-248 energy sensor incorporates the MaxUV coating and is optimized for use with ArF lasers operating at 193 nm and KrF lasers at 248 nm. This sensor is directly calibrated at 248 nm and in
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent J-50MUV-248 w/o Diffuser Energy Sensor Description：

Datasheet

This J-50MUV-248 energy sensor incorporates the MaxUV coating and is optimized for use with ArF lasers operating at 193 nm and KrF lasers at 248 nm. This sensor is directly calibrated at 248 nm and includes spectral compensation from 193 nm to 2.1 µm. It is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with MaxUV coating for measuring laser pulses from 500 µJ to 1J at up to 200 pps.

Key Features:

19 to 2.1 µm spectral range

50 mm active area diameter

500 µJ to 1J energy range

200 pps repetition rate operation

ISO 17025 accredited

Specifications

Cable Type

J DB-25

Active Area Diameter

50 mm

Detector Coating

MaxUV

Energy Range

500 µJ to 1J

Wavelength Range

190 nm to 2100 nm

Noise Equivalent Energy

<16 µJ

Maximum Pyroelectric Rep. Rate (pulses per second)

200

Maximum Average Power (watts)

Maximum Pulse Width (microseconds)

Maximum Energy Density (millijoules per square centimeter)

260 (at 248 nm, 10 ns)

Maximum Energy Density (millijoules per square centimeter)

200 (@ 193nm, 10ns)

Diffuser

Calibration Uncertainty (%)(k=2)

±3

Energy Linearity (%)

±3

Calibration Wavelength (nanometers)

248

Cable Length (meters)

2.5
