TRIAXIAL ACCELEROMETER CONNECTORS

Updated:2023-06-14

Brand: CTC
Model: J4A,J4AG,J4L,J4N,J4NG,J4R,JQ4A,JQ4N,M4A,M4N,R4J,V4J,JV4R,A5A,A6A,J4C,M4C
Product description: CTC's J Series 4 Socket Mini-MIL connectors are a proprietary connector style designed specifically for CTC's triaxial sensors. J series connectors feature the same proprietary injection molding proce
Data download

Feedback
WeChat

QQ

Online Service

product details

TRIAXIAL ACCELEROMETER CONNECTORS Description：

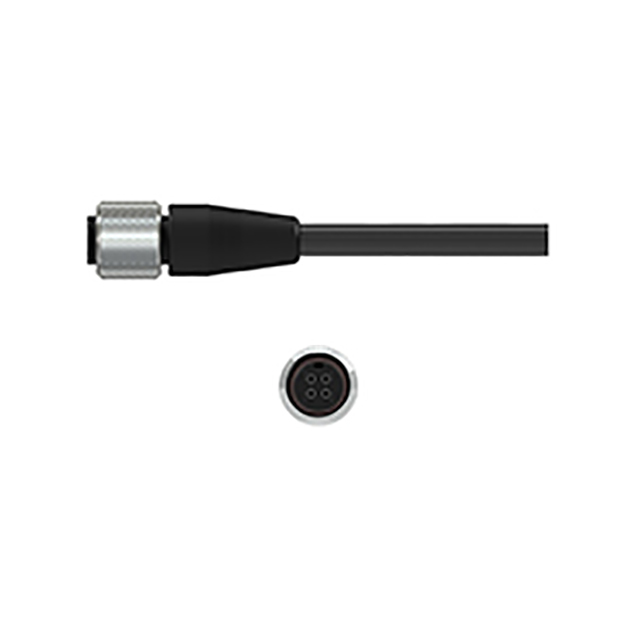

CTC's J Series 4 Socket Mini-MIL connectors are a proprietary connector style designed specifically for CTC's triaxial sensors. J series connectors feature the same proprietary injection molding process as our standard MIL-style connectors. As a result, these connectors are extremely durable and rugged, and are available in polycarbonate, nylon, PPS, and polyurethane molded options. Also available is a seal-tight Viton® boot style for high corrosion resistance and an IP69 rated seal.

J4ADatasheet

4 Socket Mini-MIL Connector for CTC 4 Pin Triaxial Accelerometers, Polycarbonate Molded, Permanent Mount, 250 °F (121 °C) Max Temp

J4AGDatasheet

4 Socket Mini-MIL Connector with Grounded Backshell, Polycarbonate Molded, Permanent Meausrements, 250 °F (121 °C) Max Temp

J4LDatasheet

4 Socket Mini-MIL, 303 Stainless Steel Hydraulic Hose Connector, Permanent Mount, 212 °F (100 °C) Max Temp

J4NDatasheet

4 Socket Mini-MIL Connector for CTC 4 Pin Triaxial Accelerometers, Nylon Molded, Permanent Mount, 250 °F (121 °C) Max Temp

J4NGDatasheet

4 Socket Mini-MIL Connector with Grounded Backshell, Nylon Molded, Permanent Measurements, 250 °F (121 °C) Max Temp

J4RDatasheet

4 Socket Mini-MIL Connector for CTC 4 Pin Triaxial Accelerometers, PPS Molded, Permanent Mount, 392 °F (200 °C) Max Temp

JQ4A Datasheet

4 Socket Mini-MIL Connector, Polycarbonate Molded with Grounded Locking Ring for Class 1, Division 2 Locations, 250 °F (121 °C) Max Temp

JQ4NDatasheet

4 Socket Mini-MIL Connector with Grounded Backshell for Class I, Division 2 Locations, Nylon Molded, Permanent Measurements, 250 °F (121 °C) Max Temp

M4ADatasheet

5 Socket M12, Polycarbonate Molded Connector, for use with 4 Conductor Cables, Permanent Mount, 250 °F (121 °C) Max Temp

M4NDatasheet

5 Socket M12, Nylon Molded Connector, for use with 4 Conductor Cables, Permanent Mount, 250 °F (121 °C) Max Temp

R4JDatasheet

4 Pin Mini-MIL Connector with Rubber Bending Strain Relief, Polyurethane Molded, 250 °F (121 °C)

V4JDatasheet

4 Socket Mini-MIL Seal-Tight Viton® Boot with Polycarbonate Insert, for 4 Pin Mini-MIL Triaxial Accelerometers, Permanent Mount, 250 °F (121 °C) Max Temp

JV4RDatasheet

High Temperature, 4 Socket Mini-MIL Seal-Tight Viton® Boot Connector with PPS Insert, for use with CTC Triaxial Accelerometers, Permanent Mount, 350 °F (177 °C) Max Temp

A5ADatasheet

6 Socket MIL-Style with 5 Live Sockets, Polycarbonate Molded Connector, Compatible with CTC Dual Output Vibration & Temperature Triaxial Sensors, Permanent Mount, 250 °F (121 °C) Max Temp

A6ADatasheet

6 Socket MIL-Style, Polycarbonate Molded Connector, Compatible with CTC Loop Power Triaxial Sensors, Permanent Mount, 250 °F (121 °C) Max Temp

J4CDatasheet

4 Socket Mini-MIL Connector with Rubber Bending Strain Relief, for use with CTC 4 Pin Triaxial Accelerometers, Polyurethane Molded, Portable Measurement, 250 °F (121 °C) Max Temp
