L30C-LP2-26-SH 7Z02775 Thermal Power/Energy Laser Measurement Sensor

Updated:2023-06-01

Brand：Ophir
Model：L30C-LP2-26-SH
Product description: The L30C-LP2-26-SH is a compact thermal power/energy laser measurement sensor for freestanding use or mounted to host system. It has a 26mm aperture and can measure from 300mW to 10W stand alone and t
Data download

Feedback
WeChat

QQ

Online Service

product details

L30C-LP2-26-SH 7Z02775 Thermal Power/Energy Laser Measurement Sensor Description：

The L30C-LP2-26-SH is a compact thermal power/energy laser measurement sensor for freestanding use or mounted to host system. It has a 26mm aperture and can measure from 300mW to 10W stand alone and to 100W when heat sinked. It can measure energy from 30mJ to 2000J. The sensor is able to measure high power lasers of up to 4kW by measuring the energy of 0.5 - 4s exposure to the laser. The high damage threshold LP2 absorber covers the spectral range from 0.25 to 2.2µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

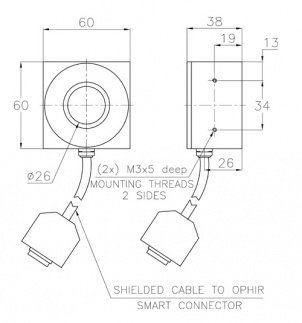

L30C-LP2-26-SH 7Z02775 Thermal Power/Energy Laser Measurement Sensor Drawing：

L30C-LP2-26-SH Drawing

L30C-LP2-26-SH 7Z02775 Thermal Power/Energy Laser Measurement Sensor Specifications：

Aperture	Ø26mm
Spectral Range	0.25-2.2µm
Power Range	300mW-100W
Energy Range	30mJ-2000J
Dimensions	60 L x 60 W x 38 D (mm)
Max Average Power Density	42kW/cm² at 100 W
Response Time	1.5 s
Max Energy Density(for <100ns)	0.1J/cm²
Max Energy Density(for 2ms)	130J/cm²
Max Average Power	100W heat sinked
Communication	N.A.
