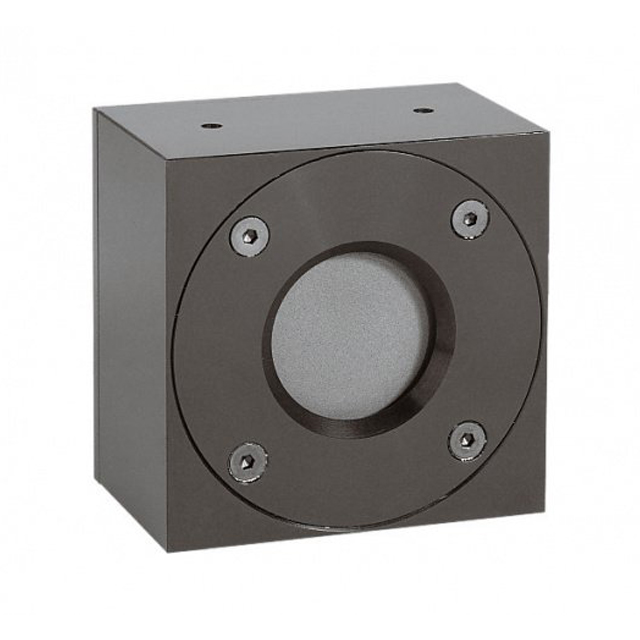

L30C-SH 773434 Thermal Power/Energy Laser Measurement Sensor

Updated:2023-06-01

Brand：Ophir
Model：L30C-SH
Product description: The L30C-SH is a compact thermal power/energy laser measurement sensor for freestanding use or mounted to host system. It has a 26mm aperture and can measure from 300mW to 10W stand alone and to 100W
Data download

Feedback
WeChat

QQ

Online Service

product details

L30C-SH 773434 Thermal Power/Energy Laser Measurement Sensor Description：

The L30C-SH is a compact thermal power/energy laser measurement sensor for freestanding use or mounted to host system. It has a 26mm aperture and can measure from 300mW to 10W stand alone and to 100W when heat sinked. It can measure energy from 30mJ to 100J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20µm.

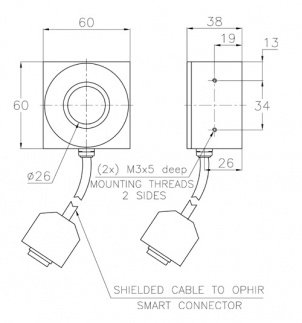

L30C-SH 773434 Thermal Power/Energy Laser Measurement Sensor Drawing：

L30C-SH Drawing

L30C-SH 773434 Thermal Power/Energy Laser Measurement Sensor Specifications：

Aperture	Ø26mm
Spectral Range	0.19-20µm
Power Range	300mW-100W
Energy Range	30mJ-100J
Dimensions	60 L x 60 W x 38 D (mm)
Max Average Power Density	14kW/cm² at 100 W
Response Time	1.5 s
Max Energy Density(for <100ns)	0.3J/cm²
Max Energy Density(for 2ms)	10 J/cm²
Max Average Power	100W heat sinked
Communication	N.A.
