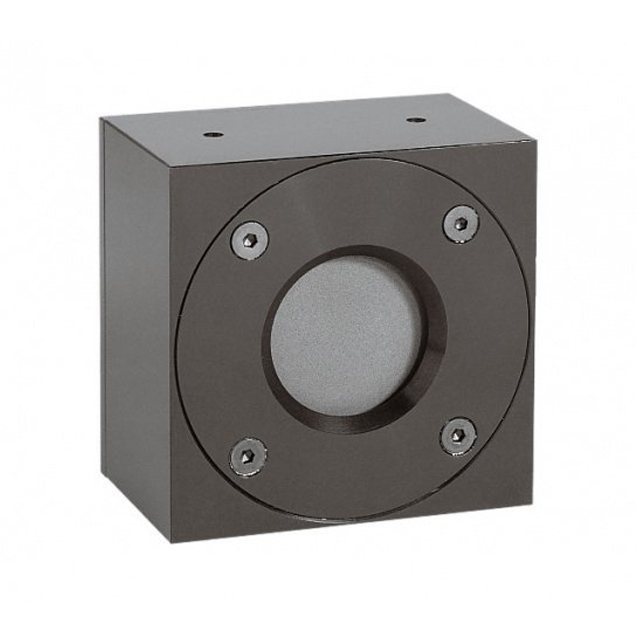

L30C-UAF OEM Thermal Power/Energy Laser Sensor

Updated:2023-06-01

Brand：Ophir
Model：L30C-UAF
Description: The L30C-UAF is a compact OEM thermal power/energy laser sensor. It has a 26mm aperture measures from 300mW to 10W free standing and to 100W when mouted to heat sink. It can measure energy from 30mJ t
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L30C-UAF OEM Thermal Power/Energy Laser Sensor Description：

The L30C-UAF is a compact OEM thermal power/energy laser sensor. It has a 26mm aperture measures from 300mW to 10W free standing and to 100W when mouted to heat sink. It can measure energy from 30mJ to 100J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20µm. It has analog and RS232 ouput.

L30C-UAF OEM Thermal Power/Energy Laser Sensor Drawing：

L30C-UAF Drawing

L30C-UAF OEM Thermal Power/Energy Laser Sensor Specifications：

Aperture	Ø26mm
Spectral Range	0.19-20µm
Power Range	300mW-100W
Energy Range	30mJ-100J
Dimensions	60 L x 60 W x 38 D (mm)
Max Average Power Density	14kW/cm² at 100 W
Response Time	1.5 s
Max Energy Density(for <100ns)	0.3J/cm²
Max Energy Density(for 2ms)	10J/cm²
Max Average Power	100W heat sinked
Communication	RS232, Analog
