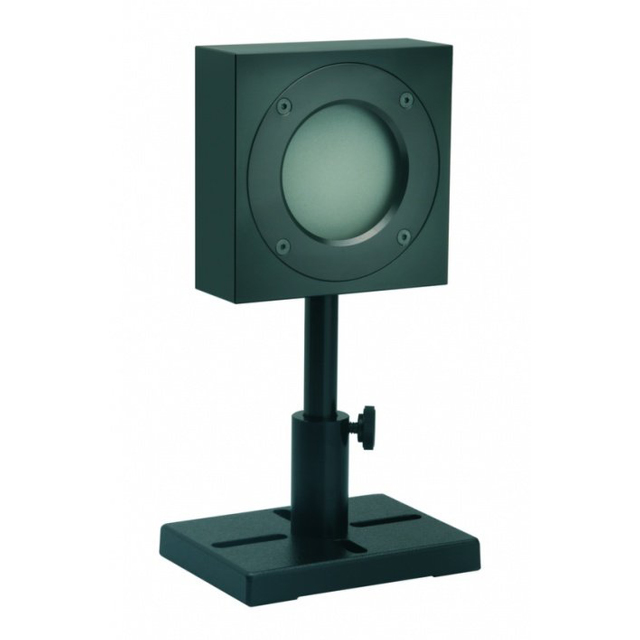

L40(250)A-BB-50 7Z07110 Thermal Power/Energy Laser Measurement Sensor

Updated:2023-06-05

Brand：Ophir
Model：L40(250)A-BB-50
Description: The L40(250)A-BB-50 is a general purpose thermal power/energy laser measurement sensor with a 50mm aperture. It can measure from 300mW to 35W continuously and to 250W intermittently. It can measure en
Data download

Feedback
WeChat

QQ

Online Service

Product Details

L40(250)A-BB-50 7Z07110 Thermal Power/Energy Laser Measurement Sensor Description：

The L40(250)A-BB-50 is a general purpose thermal power/energy laser measurement sensor with a 50mm aperture. It can measure from 300mW to 35W continuously and to 250W intermittently. It can measure energy from 100mJ to 4000J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

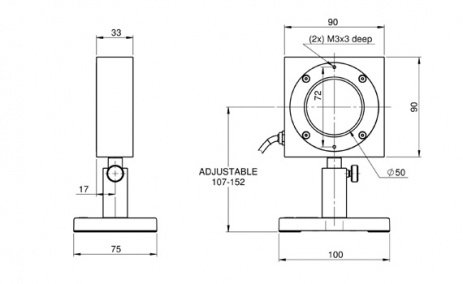

L40(250)A-BB-50 7Z07110 Thermal Power/Energy Laser Measurement Sensor Drawing：

L40(250)A-BB-50 Drawing

L40(250)A-BB-50 7Z07110 Thermal Power/Energy Laser Measurement Sensor Specifications：

Absorber Type	Broadband
Aperture	Ø50mm
Spectral Range	0.19-11µm
Power Range	300mW-250W
Energy Range	100mJ-4000J
Dimensions	90 L x 90 W x 33 D (mm)
Max Pulse Energy	4000J
Max Average Power Density	10kW/cm²
Response Time	2.5 s
Max Energy Density(for <100ns)	0.3J/cm²
Max Energy Density(for 2ms)	10J/cm²
Max Average Power	250W
