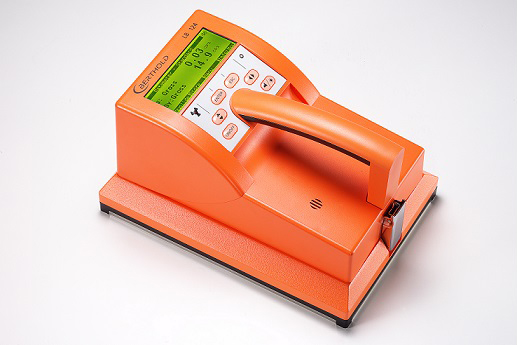

LB 124 SCINT Portable Contamination Monitors (Berthold)

Updated:2023-09-15

Brand: Berthold
Model: LB 124 SCINT
Product description: The contamination monitor LB 124 SCINT Series, with simultaneous and separate measurement of alpha and beta-gamma radiation, are based on innovative scintillation technology. The compact and precise c
Data download

Feedback
WeChat

QQ

Online Service

product details

LB 124 SCINT Portable Contamination Monitors Description：

Datasheet User's Manual

The contamination monitor LB 124 SCINT Series, with simultaneous and separate measurement of alpha and beta-gamma radiation, are based on innovative scintillation technology. The compact and precise contamination measuring instruments are versatile and can be used flexibly in practical radiation protection.

The LB 124 SCINT Series have an attractive and ergonomic design and due to their low weights they are easy to handle. The measurement results can be easily read on a large high-resolution display with backlighting, even under unfavourable conditions.

HIGHLIGHTS

General

Different detector sizes and types available

Light, handy and extremely rugged device

High sensitivity and uniform response

Calibration factors for over 50 nuclides

Calibration optionally according to ISO 7503-1 or with reference to an activity of 100 cm2

SCINT Technology

Unique simultaneous and separate measurement of alpha and beta-gamma radiation

The individual types of radiation can be distinguished by means of special evaluation and correlation circuits, and thus separated and measured at the same time

High sensitivity even at low energies

No counting gas required

Probes & Connectivity

Additional Dose Rate Detector (LB 124 SCINT-D)

Xenon filled proportional counter technology (LB 124 B)

RS232 interface

Headphone connection

DIFFERENT VERSIONS

LB 124 SCINT

Sensitive area of 170 cm²

Simultaneous and separate α- and β-γ-measurement

Calibration factors for more than 50 nuclides

Protective grid with high transmission

Adjustable alarm thresholds

Acoustic alarm

High sensitivity and uniform response

Lightweight, easy to handle and rugged instrument

Wide temperature range

LB 124 SCINT-300

Large detector area of 345 cm²

Time efficient measurement of large surfaces

High efficiency over the entire sensitive area

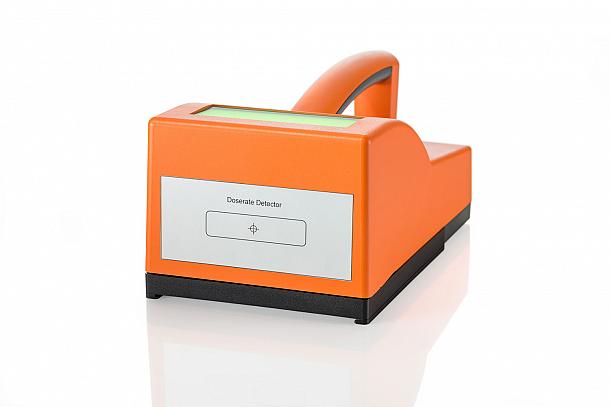

LB 124 SCINT-D

Mobile determination of contamination and equivalent dose rate H*(10)

Sensitive area of 170 cm²

Additional gamma dose rate detection

Simultaneous, separate measurement of alpha and beta-gamma radiation or gamma dose rate (2 channels)

LB 124-B Xenon

Sensitive area of 150 cm²

Contamination monitor on the proven detector technology with Xenon filled proportional counters

Precise contamination monitor, versatile and flexible in practical radiation protection

Offers a high sensitivity for beta radiation and photons and is particularly suitable for the detection of X-rays

PRODUCT COMPARISON TABLE

Overview

	LB 124 SCINT	LB 124 SCINT-300	LB 124 SCINT-D	LB 124-B
ZnS detector	✓	✓	✓	X
Xenon detector	X	X	X	✓
Additional dose rate detector	X	X	✓	X
Weight (in g)	1300	1750	1400	1620
Mechanical data (L x W x D in mm)	240 x 140 x 110	260 x 178 x 150	240 x 140 x 110	240 x 140 x 110
Protection class (according to IEC 60529)	IP 53	IP 53	IP 53	IP 64
Sensitive detector area in cm²	170	345	170	150

LB 124 SCINT

Radiation detector	ZnS(Ag) scintillator
Measurement modes	Simultaneous alpha- and beta-gamma-measurement; ratemeter, scaler-timer-mode, clearance measurement, survey mode
Dimensions entrance window	118 mm x 145 mm
Sensitive area	170 cm²
Material entrance window	2 x 3 µm metallized plastic (0.4 mg/cm²)
Protective grid	80 % transmission
Typical background
(α-channel)	approx. 0.1 cps
(β-γ-channel)	approx. 10 cps
Typical efficiencies (according to ISO 7503-1)
²⁴¹Am	approx. 44 %
¹⁴C	approx. 29 %
³⁶Cl	approx. 69 %
⁶⁰Co	approx. 58 %
¹³⁷Cs	approx. 71 %
Gamma sensitivity at 1 µSv/h ¹³⁷Cs
(α-channel)	Not detectable
(β-γ-channel)	< 100 cps
Spillover
α- in β-γ-channel	< 20 %
β-γ- in α-channel	< 2 x 10^-5
Measuring range
(α-channel)	0 to 5000 cps
(β-γ-channel)	0 to 50000 cps

ACCESSORIES

Contamination monitor	LB 124 SCINT	43727-10
Test source	200 Bq ⁹⁰Sr 800 Bq ²⁴¹Am	41872 46611
Aluminum case	LB 124-KB	38164
Power supply	Multirange	58067
Wall bracket	for LB 124 SCINT	38789
Additional protection grid	for LB 124 SCINT	45355
Data cable	D-Sub cable 3 m	26204
Rechargeable batteries	3 x NiMH 1.2V/4.5 AH	40650
Floor trolley	for LB 124 SCINT	41028

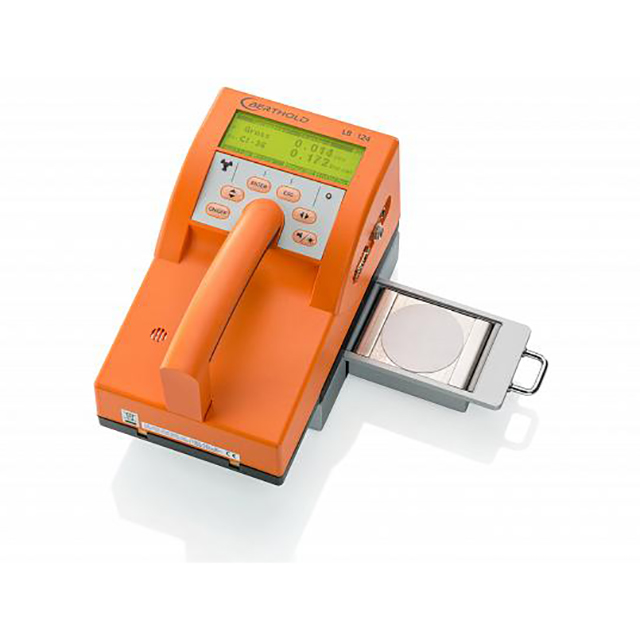

Sample holder with drawer	for LB 124 SCINT	40927
