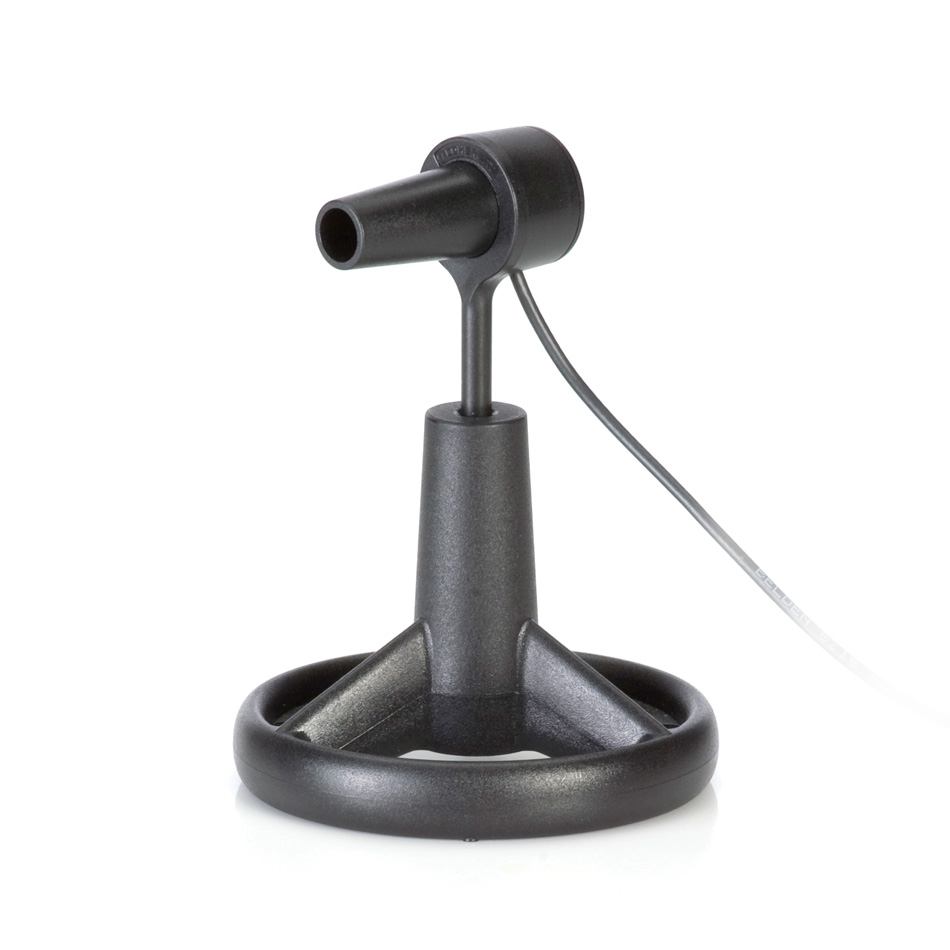

Coherent LM-2 IR Semiconductor Power Sensor

Updated:2024-11-26

Brand: Coherent
Model: LM-2 IR
Description: LM-2 high-sensitivity optical sensors are ideal for measurement in the nW to low mW level. An optional 1000:1 attenuator is available (PN 1098318) to support operation up to 5 Watts. SMA-type (PN 10
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent LM-2 IR Semiconductor Power Sensor Description：

Datasheet

LM-2 high-sensitivity optical sensors are ideal for measurement in the nW to low mW level. An optional 1000:1 attenuator is available (PN 1098318) to support operation up to 5 Watts. SMA-type (PN 1098589) and FC/PC-type (PN 1098339) fiber optic adapters are available.

The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax meters. For compatibility with other catalog meters choose the OP-2 VIS model (PN 1098416).

Low power germanium semiconductor power sensor for measuring CW lasers between 10 nW and 10 mW.

Key Features:

10 nW to 10 mW range

5 mm diameter active area

Germanium detector

800 to 1800 nm spectral range

Fiber adapters available

ISO 17025 accredited

Specifications

Cable Type

LM DB-25

Power Range

10 nW to 10 mW

Active Area Diameter

5 mm

Wavelength Range

800 nm to 1550 nm

Detector

Germanium

Wavelength Range (micrometers)

0.8 to 1.5

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±4.5

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

800 to 1550 nm

Cable Length (meters)

1.8

Maximum Power Density (watts per square centimeter)

0.5

Resolution (nanowatts)
