SE Monitor 1000EC

Updated:2023-10-12

Brand: SE
Model: Monitor 1000EC
Product description: The Monitor 1000EC is an energy compensated radiation detector that measures gamma and X-rays. Users can choose from readings of CPM, CPS, µSv/hr, mR/hr or in accumulated counts. It has a red count li
Data download

Feedback
WeChat

QQ

Online Service

product details

SE Monitor 1000EC Description：

Product Manual

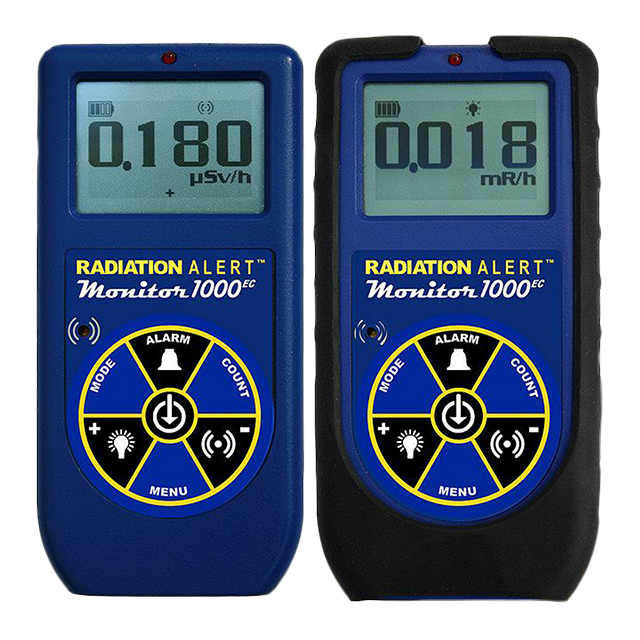

The Monitor 1000EC is an energy compensated radiation detector that measures gamma and X-rays. Users can choose from readings of CPM, CPS, µSv/hr, mR/hr or in accumulated counts. It has a red count light, a beeper that sounds with each count detected and includes an adjustable timer and selectable alert. The free Observer Software for PCs and Android OS allows you to set alarms, select preferences and download your collected data. The Bluetooth and Observer BLE for Android enables saving, sharing and automation of surveys and RadResponder compatibility.

This optional accessory was custom designed for use with the Radiation Alert Ranger, Monitor 200 and Monitor 1000EC. Ideal for users whose operational needs are primarily out in the field. Smart design and durable materials.

Lightweight thermoplastic KYDEX shell

Blade-Tech Tek-Lok belt clip

Accommodates up to a 2.25” belt

Adjustable tension clip to hold instrument in place

Monitor 200 Kit Includes

Carrying Case

Xtreme Boot

Stand

Mini USB Cable

Lanyard

Certificate of Conformance

Observer USB for PCs and Observer BLE for Android Download

Specifications

Detector	Energy Compensated Halogen-quenched GM tube.
Operating Range	mR/hr - .001 (1µR) to 1000 mR/hr µSv/hr - 0.1 to 10,000 CPM - 0 to 450,000 CPS - 0 to 7,500 Timed Count - 1 to 9,999K (9,999,000) counts
Accuracy	Typically ±15% of reading. ±10% typical (NIST)
Energy Sensitivity	450 CPM/mR/hr referenced to Cs137 Detects gamma and x-rays down to 40 keV. Response is flat from 40 keV up.
Alert Set Range	mR/hr .001 - 1,000 and CPM 1 - 450,000. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM and µSv/hr / CPS. Internally mounted beeper. .70 dB @ 1m. Alarm will sound when in Timer mode when the alarm threshold is reached. (can be switched off for silent operation)
Anti Saturation	Readout will hold a full scale in radiation as high as 100 times the maximum reading.
Display	Backlit Graphic LCD
Audio Indicator	Sounds with each count (can be switched off for silent operation)
Count Light	Red LED flashes with each count
Outputs	USB and Bluetooth 4.1 with included Observer Software Family for PC and Android OS.
Power Requirements	2 AA alkaline batteries. Approximately 800 hours @ background.
Temperature Range	14°F to 122°F (-10°C to 50°C)
Dimensions	5.5" x 2.7" x 1.3" (140 x 68 x 33 mm)
Weight	0.45 lbs. (204 g)
Options	NIST Calibration
Limited Warranty	1 year limited warranty
