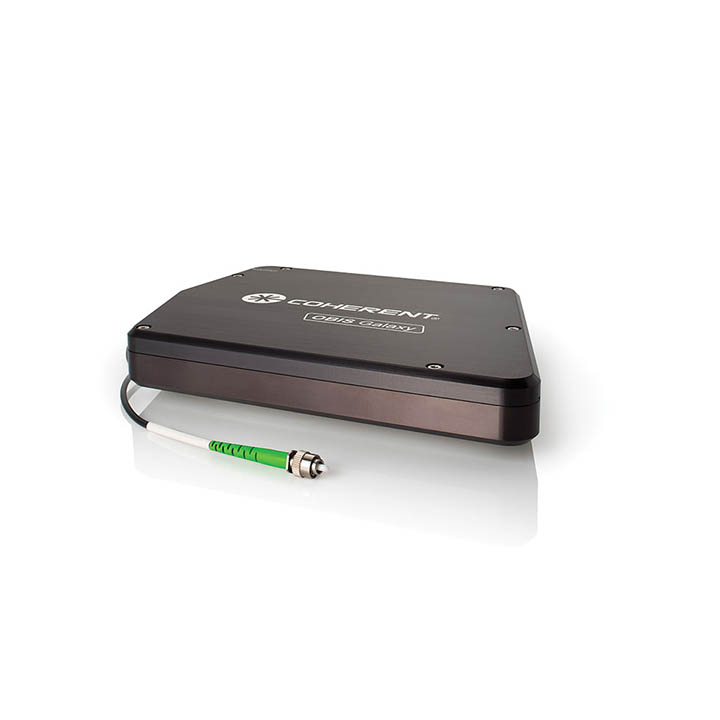

Coherent OBIS Galaxy Laser Combiner

Coherent OBIS Galaxy Laser Combiner Description：

Datasheet

Coherent OBIS Galaxy laser combiner. Multi-wavelength Laser Engine. 8 lasers into a single output fiber is easy with OBIS Galaxy. Plug-and-play laser beam combiner, offering ease of integration as well as the superior performance and reliability of the OBIS laser family. Output Fiber with standard FC/APC connector.

The Coherent Galaxy Beam Combiner offers an easy way to build and upgrade your laser system needs to more wavelengths and more power. Simple FC fiber connector inputs allow for fast and simple integration. Coherent's Ultra-Flat FC/PC connectors (UFC) for the Galaxy inputs offers built-in precision beam alignment. Coherent's output fiber is a standard FC/APC with extended-life-interface as well as constant NA (Numerical Aperture) across the wavelengths.

Patented refractive design to help eliminate costly optical coatings and to preserve polarization. The OBIS Galaxy is your best choice for combining up to 8 lasers into a single output fiber. Select your OBIS Fiber Pigtailed lasers with UFC for integration into Galaxy.

Key Features:

8 inputs to accept 405, 445, 488, 514, 532, 561, 594, 640 nm

Single Output Fiber, Single Mode, Polarization-Maintaining, Constant NA and 2 meter length

High power transmission with typical 60% throughput per channel

Compact and low-profile design

Optional laser box for remote features and thermal management

Specifications
