PD10-IR-C 7Z02955 Photodiode Energy Meter For Low Energies

Updated:2023-05-29

Brand：Ophir
Model：PD10-IR-C
Product description: The PD10-IR-C is a photodiode energy meter for low energies with a 5mm aperture. It can measure energies from 1nJ up to 600nJ. It can operate at repetition rates up to 10kHz and covers the spectral ra
Data download

Feedback
WeChat

QQ

Online Service

product details

PD10-IR-C 7Z02955 Photodiode Energy Meter For Low Energies Description：

The PD10-IR-C is a photodiode energy meter for low energies with a 5mm aperture. It can measure energies from 1nJ up to 600nJ. It can operate at repetition rates up to 10kHz and covers the spectral range from 0.7 - 1.8µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

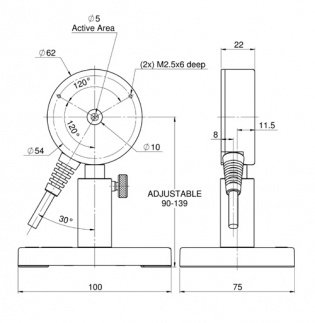

PD10-IR-C 7Z02955 Photodiode Energy Meter For Low Energies Drawing：

PD10-IR-C Drawing

PD10-IR-C 7Z02955 Photodiode Energy Meter For Low Energies Specifications：

Aperture	Ø5mm
Spectral Range	0.7-1.8µm
Energy Range	1nJ-600nJ
Maximum Frequency	10,000Hz
Dimensions	Ø62 W x 22 D (mm)
Max Pulse Energy	600nJ
Max Average Power Density	50W/cm²
Max Pulse Width	0.005 ms
Max Average Power	6mW
