PD300-UAS OEM Photodiode Laser Power Sensor

Updated:2023-06-01

Brand：Ophir
Model：PD300-UAS
Product description: The PD300-UAS is a very compact OEM photodiode laser power sensor with built in electronics and dimensions only 38x38x32mm. It has a 10x10mm aperture and can measure from as low as 100pW up to 50mW de
Data download

Feedback
WeChat

QQ

Online Service

product details

PD300-UAS OEM Photodiode Laser Power Sensor Description：

The PD300-UAS is a very compact OEM photodiode laser power sensor with built in electronics and dimensions only 38x38x32mm. It has a 10x10mm aperture and can measure from as low as 100pW up to 50mW depending on configuration. Its silicon detector can cover light sources from 200nm to 1100nm.

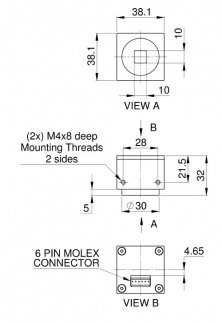

PD300-UAS OEM Photodiode Laser Power Sensor Drawing：

PD300-UAS Drawing

PD300-UAS OEM Photodiode Laser Power Sensor Specifications：

Aperture	10x10mm
Spectral Range	0.2 – 1.1µm
Power Range	100pW-50mW
Energy Range	N.A
Dimensions	38 L x 38 W x 32 D (mm)
Max Average Power Density	~ 50W/cm²
Response Time	0.2 s
Max Energy Density(for <100ns)	N.A
Max Energy Density(for 2ms)	N.A
Max Average Power	Up to 50mW
Communication	RS232, Analog
