PE10-C 7Z02932 Pyroelectric Energy Meter For Low Energies

Updated:2023-05-30

Brand：Ophir
Model：PE10-C
Product description: The PE10-C is a pyroelectric energy meter for low energies with a 10mm aperture. It can measure energies from 1µJ up to 10mJ. It can operate at repetition rates up to 25kHz and covers the spectral ran
Data download

Feedback
WeChat

QQ

Online Service

product details

PE10-C 7Z02932 Pyroelectric Energy Meter For Low Energies Description：

The PE10-C is a pyroelectric energy meter for low energies with a 10mm aperture. It can measure energies from 1µJ up to 10mJ. It can operate at repetition rates up to 25kHz and covers the spectral range from 0.15 - 12µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

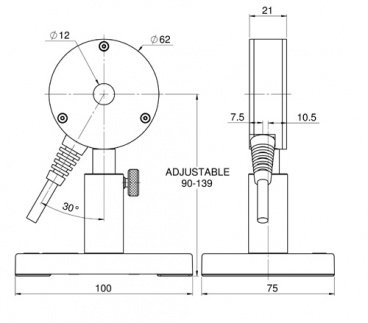

PE10-C 7Z02932 Pyroelectric Energy Meter For Low Energies Drawing：

PE10-C Drawing

PE10-C 7Z02932 Pyroelectric Energy Meter For Low Energies Specifications：

Absorber Type	metallic
Aperture	Ø12mm
Spectral Range	0.15-12µm
Energy Range	1µJ-10mJ
Maximum Frequency	25,000Hz
Dimensions	Ø62 W x 21 D (mm)
Max Pulse Energy	10mJ
Max Average Power Density	50W/cm²
Max Pulse Width	30µs
Damage Threshold(for <100ns)	0.1J/cm²
Damage Threshold(for 2ms)	6J/cm²
Max Average Power	2W
