PE10BF-C 7Z02938 High Damage Threshold Pyroelectric Energy Meter For Low Energies

Updated:2023-05-30

Brand：Ophir
Model：PE10BF-C
Product description: The PE10BF-C is a high damage threshold pyroelectric energy meter for low energies with a 12mm aperture. It can measure energies from 7µJ up to 10mJ. It can operate at repetition rates up to 250Hz and
Data download

Feedback
WeChat

QQ

Online Service

product details

PE10BF-C 7Z02938 High Damage Threshold Pyroelectric Energy Meter For Low Energies Description：

The PE10BF-C is a high damage threshold pyroelectric energy meter for low energies with a 12mm aperture. It can measure energies from 7µJ up to 10mJ. It can operate at repetition rates up to 250Hz and covers the spectral range from 0.15 - 3, 10.6µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

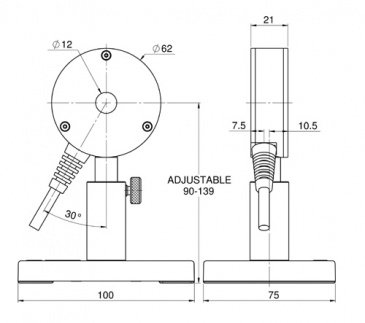

PE10BF-C 7Z02938 High Damage Threshold Pyroelectric Energy Meter For Low Energies Drawing：

PE10BF-C Drawing

PE10BF-C 7Z02938 High Damage Threshold Pyroelectric Energy Meter For Low Energies Specifications：

Absorber Type	BF
Aperture	Ø12mm
Spectral Range	0.15-3, 10.6µm
Energy Range	7µJ-10mJ
Maximum Frequency	250Hz
Dimensions	Ø62 W x 21 D (mm)
Max Pulse Energy	10mJ
Max Average Power Density	50W/cm²
Max Pulse Width	5ms
Damage Threshold(for <100ns)	0.8J/cm²
Damage Threshold(for 2ms)	10J/cm²
Max Average Power	3W
