PE50-DIF-C 7Z02939 Pyroelectric Energy Meter

Updated:2023-05-30

Brand：Ophir
Model：PE50-DIF-C
Product description: The PE50-DIF-C is a pyroelectric energy meter with a diffuser for concentrated beams. It has a 35mm aperture and can measure energies from 20µJ up to 10J. It can operate at repetition rates up to 10kH
Data download

Feedback
WeChat

QQ

Online Service

product details

PE50-DIF-C 7Z02939 Pyroelectric Energy Meter Description：

The PE50-DIF-C is a pyroelectric energy meter with a diffuser for concentrated beams. It has a 35mm aperture and can measure energies from 20µJ up to 10J. It can operate at repetition rates up to 10kHz and covers the spectral range from 0.19 - 2.2 and 2.94µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

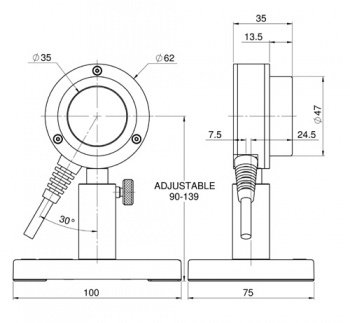

PE50-DIF-C 7Z02939 Pyroelectric Energy Meter Drawing：

PE50-DIF-C Drawing

PE50-DIF-C 7Z02939 Pyroelectric Energy Meter Specifications：

Absorber Type	Metallic with diffuser
Aperture	Ø35mm
Spectral Range	0.19-2.2µm, 2.94µm
Energy Range	20µJ-10J
Maximum Frequency	10,000Hz
Dimensions	Ø62 W x 35 D (mm)
Max Pulse Energy	10J
Max Average Power Density	100W/cm²
Max Pulse Width	5 ms
Damage Threshold(for <100ns)	1J/cm²
Damage Threshold(for 2ms)	40J/cm²
Max Average Power	25W
