PE50BB-DIF-C 7Z02947 Pyroelectric Energy Meter Description：

The PE50BB-DIF-C is a pyroelectric energy meter with a removable diffuser that is spectrally flat with diffuser off. It has a 46mm aperture with diffuser out and 33mm aperture with diffuser in. It can measure energies from 0.1mJ up to 40J. It can operate at repetition rates up to 40Hz and is calibrated from 0.19 - 20µm with diffuser off and for 0.532, 1.064 and 2.1µm with diffuser on. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

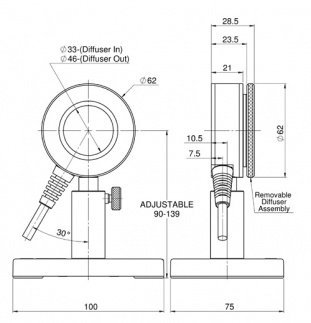

PE50BB-DIF-C 7Z02947 Pyroelectric Energy Meter Drawing：

PE50BB-DIF-C Drawing

PE50BB-DIF-C 7Z02947 Pyroelectric Energy Meter Specifications：

Absorber Type	Broadband (BB) with removable diffuser
Aperture	Ø46mm, Ø33mm with diffuser
Spectral Range	0.19-20µm, 0.4-2.5µm with diffuser
Energy Range	0.1mJ-40J
Maximum Frequency	40Hz
Dimensions	Ø62 W x 29 D (mm)
Max Pulse Energy	40J
Max Average Power Density	10W/cm²
Max Pulse Width	20 ms
Damage Threshold(for <100ns)	0.3J/cm²
Damage Threshold(for 2ms)	2J/cm²
Max Average Power	10W
