PE50BF-DIFH-C 7Z02943 Pyroelectric Energy Meter

Updated:2023-05-31

Brand：Ophir
Model：PE50BF-DIFH-C
Product description: The PE50BF-DIFH-C is a pyroelectric energy meter with a high damage threshold diffuser for concentrated beams. It has a 35mm aperture and can measure energies from 200µJ up to 10J. It has a damage thr
Data download

Feedback
WeChat

QQ

Online Service

product details

PE50BF-DIFH-C 7Z02943 Pyroelectric Energy Meter Description：

The PE50BF-DIFH-C is a pyroelectric energy meter with a high damage threshold diffuser for concentrated beams. It has a 35mm aperture and can measure energies from 200µJ up to 10J. It has a damage threshold of 6J/cm² for ns pulses. It can operate at repetition rates up to 250Hz and covers the spectral range from 0.19 - 2.2, 2.94µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

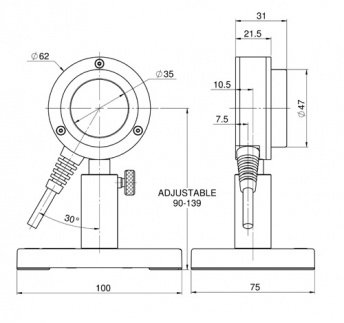

PE50BF-DIFH-C 7Z02943 Pyroelectric Energy Meter Drawing：

PE50BF-DIFH-C Drawing

PE50BF-DIFH-C 7Z02943 Pyroelectric Energy Meter Specifications：

Absorber Type	BF with diffuser
Aperture	Ø35mm
Spectral Range	0.19-2.2µm, 2.94µm
Energy Range	200µJ-10J
Maximum Frequency	250Hz
Dimensions	Ø62 W x 31 D (mm)
Max Pulse Energy	10J
Max Average Power Density	200W/cm²
Max Pulse Width	20 ms
Damage Threshold(for <100ns)	6J/cm²
Damage Threshold(for 2ms)	90J/cm²
Max Average Power	25W
