PE80BF-DIF-C 7Z02954 Pyroelectric Energy Meter

Updated:2023-05-31

Brand：Ophir
Model：PE80BF-DIF-C
Product description: The PE80BF-DIF-C is a pyroelectric energy meter with a diffuser for concentrated beams. It has a 67mm aperture and can measure energies from 4mJ up to 40J. It can operate at repetition rates up to 250
Data download

Feedback
WeChat

QQ

Online Service

product details

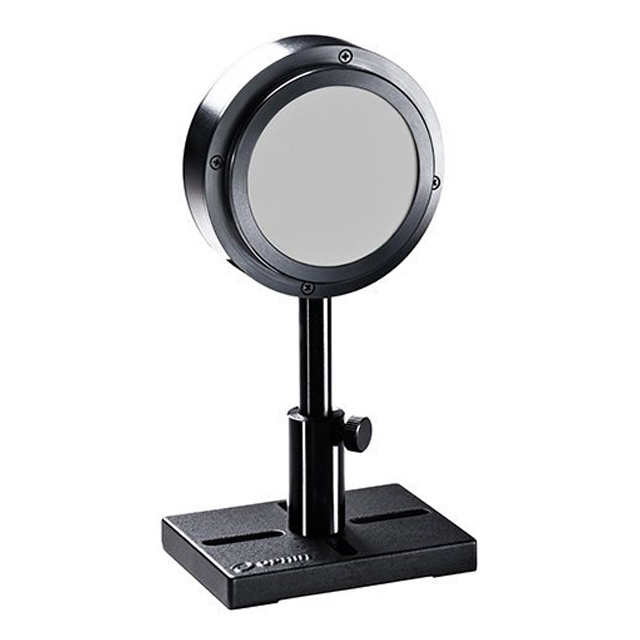

PE80BF-DIF-C 7Z02954 Pyroelectric Energy Meter Description：

The PE80BF-DIF-C is a pyroelectric energy meter with a diffuser for concentrated beams. It has a 67mm aperture and can measure energies from 4mJ up to 40J. It can operate at repetition rates up to 250Hz and covers the spectral range from 0.19 - 2.2, 2.94µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

PE80BF-DIF-C 7Z02954 Pyroelectric Energy Meter Drawing：

PE80BF-DIF-C Drawing

PE80BF-DIF-C 7Z02954 Pyroelectric Energy Meter Specifications：

Absorber Type	BF with diffuser
Aperture	Ø67mm
Spectral Range	0.19-2.2µm, 2.94µm
Energy Range	4mJ-40J
Maximum Frequency	250Hz
Dimensions	Ø95 W x 31 D (mm)
Max Pulse Energy	40J
Max Average Power Density	200W/cm²
Max Pulse Width	20 ms
Damage Threshold(for <100ns)	4J/cm²
Damage Threshold(for 2ms)	60J/cm²
Max Average Power	40W
