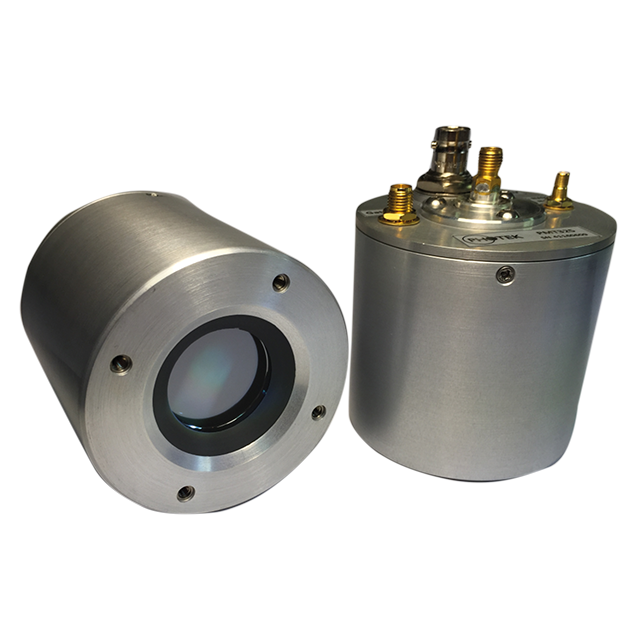

PH-DS006 Photomultipliers

Updated:2023-01-30

Views:1766

  • Brand: PHOTEK
  • Model: PH-DS006
  • Description: Applications include LIDAR, nuclear physics and time correlated photon counting. Photek manufactures 10, 25 and 40 mm photomultipliers for use in the UV, visible and NIR spectrum. Photek’s photomultip
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Description of PH-DS006 photomultiplier tubes:

Applications include LIDAR, nuclear physics and time correlated photon counting. Photek manufactures 10, 25 and 40 mm photomultipliers for use in the UV, visible and NIR spectrum. Photek’s photomultipliers are the fastest in the world with pulse rise times to 60 ps and pulse FWHM to 100 ps. For applications where gating is required the Photek photomultipliers can provide gated speeds to 2 ns.

PH-DS006 Photomultipliers:

Features:

Rise time to 60 ps (model dependant)

FWHM to 100 ps (model dependant)

Single photon jitter to 28 ps

Multi-photon jitter below 10 ps

Fast pulse output linear up to 1 A

Fast gating to 2 ns

Integral 50 ohm output

Application:

Analysis of fast optical pulses

Cherenkov light detection

Fluorescence spectroscopy

LIDAR

Particle & Nuclear physics

Single photon counting fluorescence

Time correlated photon counting

PH-DS006 Photomultiplier product line:

PHOTEK PART NO. DESCRIPTION
PMT110 10mm Active Diameter Photomultiplier, 110 ps FWHM, 5E3 gain
PMT210 10mm Active Diameter Photomultiplier, 150 ps FWHM, 1E6 Gain
PMT140 40mm Active Diameter Photomultiplier, 450 ps FWHM, 5E3 Gain
PMT240 40mm Active Diameter Photomultiplier, 850 ps FWHM, 1E6 Gain
