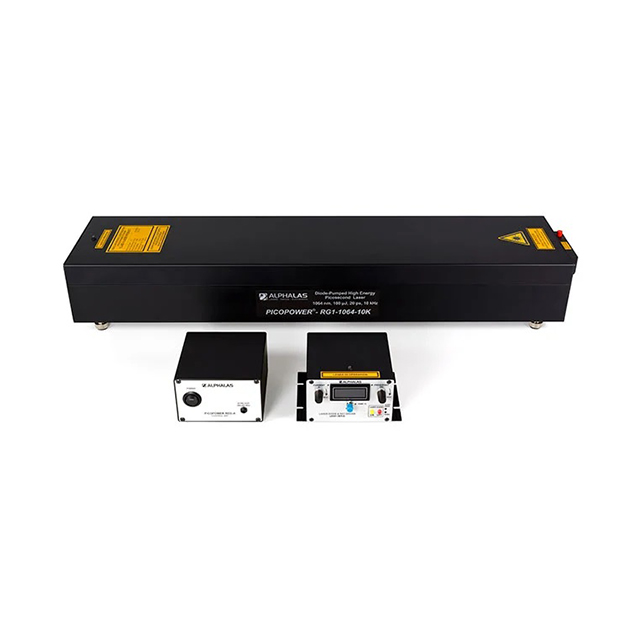

PICOPOWER™-RG1-1064-10K High-Energy Picosecond Laser

PICOPOWER™-RG1-1064-10K High-Energy Picosecond Laser Description：

Datasheet

The PICOPOWER™- RG1-1064-10K picosecond laser delivers ultra-short pulses with high energy, high peak and average power at 1064 nm wavelength with variable repetition rates from single shot to 10 kHz. It features a unique synchronization capability with unsurpassed 3.5 ps jitter for pulses on demand. Optional wavelengths at 532 nm, 355 nm and 266 nm are available collinearly or as multiple output beams. The distinctive features of this laser are excellent power, pulse-to-pulse and beam pointing stability, diffraction-limited output beam, pulse-on-demand triggering and peak power of more than 2 MW with less than 30 W electrical power consumption. It is an ideal choice for numerous applications, including micro-machining of metal and non-metal materials, semiconductor wafer inspection, carving, nonlinear optics, ultrafast spectroscopy and many others.

Features

Single or multiple outputs at 1064 nm, 532 nm, 355 nm or 266 nm wavelengths

Unsurpassed 3.5 ps rms jitter to external trigger

Less than 30 ps pulse width

50 µJ pulse energy at 1064 nm

More than 2 MW peak power at 1064 nm

Internal and external trigger

Air-cooled, compact and cost effective

Excellent Gaussian TEM00 beam profile

Variable repetition rate

Applications

High-speed and precision micro-machining (glass, silicon, plastics, etc.)

Fluorescence lifetime measurements

Multi-photon non-linear microscopy

Marking, carving and 3D engraving

Time-resolved spectroscopy

Terahertz imaging

Nonlinear optics
