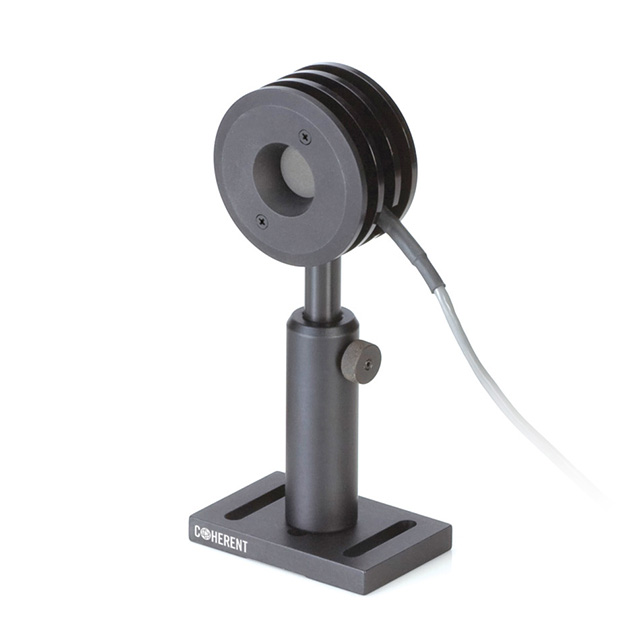

Coherent PM10V1 Laser Power Sensor

Updated:2024-11-01

Views:38

  • Brand: Coherent
  • Model: PM10V1
  • Description: This PM10V1 laser power sensor is designed for use with high peak power, low repetition rate, Q-switched Nd:YAG lasers up to 10W. A volume absorbing substrate mounted in front of the detector absorbs
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Coherent PM10V1 Laser Power Sensor Description:

Datasheet

This PM10V1 laser power sensor is designed for use with high peak power, low repetition rate, Q-switched Nd:YAG lasers up to 10W. A volume absorbing substrate mounted in front of the detector absorbs to bulk of the laser energy, instead of hitting the detector element directly. The results in a much higher damage resistance, approaching 2 J/cm2, at relatively low repetition rates of approximately 10 pps.

A removable front aperture allows easy replacement of the volume-absorbing substrate should it be damaged. Replacement absorbers may be ordered using part number 0011-8935.

The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog.

10 mW to 10W volume-absorbing power sensor, 0.25 to 3 µm spectral range, 19 mm diameter active area.

Key Features:

10 mW to 10W range

19 mm diameter active area

Volume absorbing sensor

0.25 to 3 µm spectral range

Convective air-cooled

ISO 17025 accredited

Specifications

Cable Type
PM DB-25
Cooling Type
Air
Power Range
10 mW to 10W
Active Area Diameter
19 mm
Detector Coating
Volume Absorbing
Noise Equivalent Power (milliwatts)
0.2
Maximum Intermittent Power (watts)(<5 minutes)
15
Wavelength Range (micrometers)
0.25 to 3
Maximum Energy Density (millijoules per square centimeter)
2, 1064 nm, 10 ns
Response Time, Speed-up On, 0% to 95% (seconds)
3
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±1
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
514
Cable Length (meters)
2
