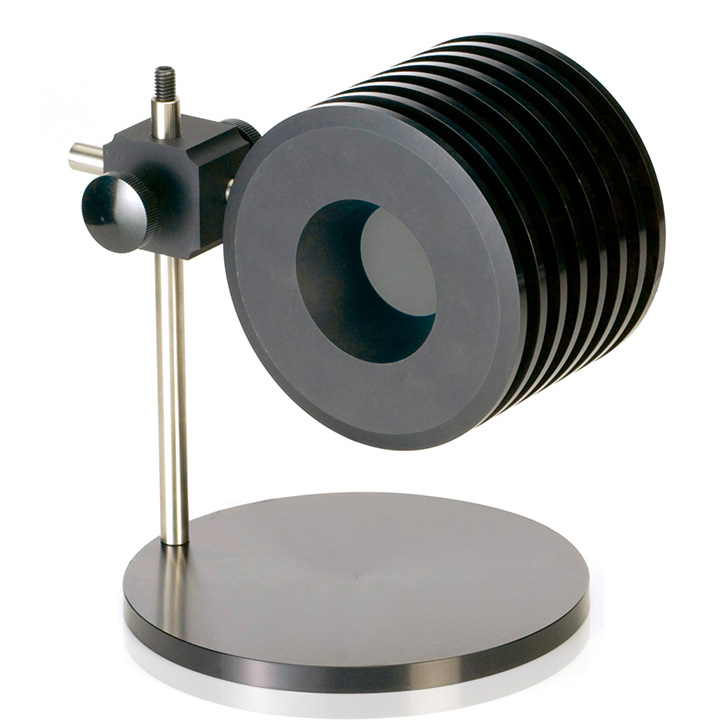

Coherent PM150-50 Power Sensor

Updated:2024-11-01

Brand: Coherent
Model: PM150-50
Description: This PM150 sensor is a convectively-cooled laser power sensor intended for measuring lasers up to 150W.The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power me
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PM150-50 Power Sensor Description：

Datasheet

This PM150 sensor is a convectively-cooled laser power sensor intended for measuring lasers up to 150W.The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog. A USB-direct model (PN 1223336) is available.

300 mW to 150W power sensor, 0.25 to 11 µm spectral range, 50 mm diameter active area.

Key Features:

300 mW to 150W range

50 mm diameter active area

Spectrally flat broadband coating

0.25 to 11 µm spectral range

Convective air-cooled

ISO 17025 accredited

Specifications

Cable Type

PM DB-25

Cooling Type

Air

Power Range

300 mW to 150W

Active Area Diameter

50 mm

Detector Coating

Broadband

Noise Equivalent Power (milliwatts)

Maximum Intermittent Power (watts)(<5 minutes)

300

Long-Pulse Joules Range (joules)

1 to 150

Wavelength Range (micrometers)

0.25 - 11

Maximum Power Density (kilowatts per square centimeter)

Maximum Energy Density (millijoules per square centimeter)

600, 1064 nm, 10 ns

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±1

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

514

Cable Length (meters)
