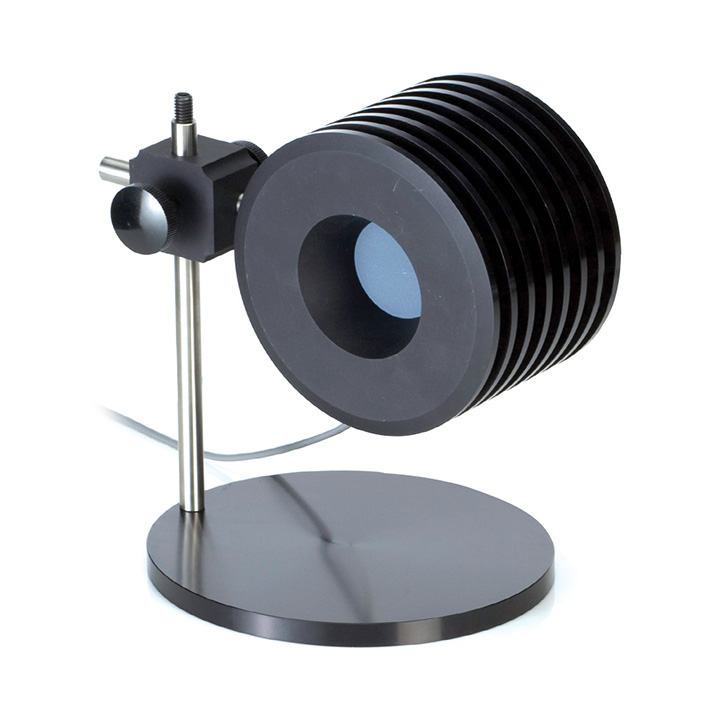

Coherent PM150X Convectively Cooled Thermopile Sensor

Updated:2024-11-04

Brand: Coherent
Model: PM150X
Description: This PM150X sensor is a convectively cooled laser power sensor intended for measuring lasers up to 150W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spe
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PM150X Convectively Cooled Thermopile Sensor Description：

Datasheet

This PM150X sensor is a convectively cooled laser power sensor intended for measuring lasers up to 150W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.

The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog. A USB-direct model (PN 1263294) is available.

Key Features:

300 mW to 150W range

50 mm diameter active area

UV coating

0.19 to 1 µm spectral range

Convective air-cooled

ISO 17025 accredited

Specifications

Cable Type

PM DB-25

Cooling Type

Air

Power Range

300 mW to 150W

Active Area Diameter

50 mm

Detector Coating

Noise Equivalent Power (milliwatts)

Maximum Intermittent Power (watts)(<5 minutes)

300

Long-Pulse Joules Range (joules)

1 to 150

Wavelength Range (micrometers)

0.15 - 1

Maximum Power Density (kilowatts per square centimeter)

Maximum Energy Density (millijoules per square centimeter)

600, 1064 nm, 10 ns

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±1

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

514

Cable Length (meters)
