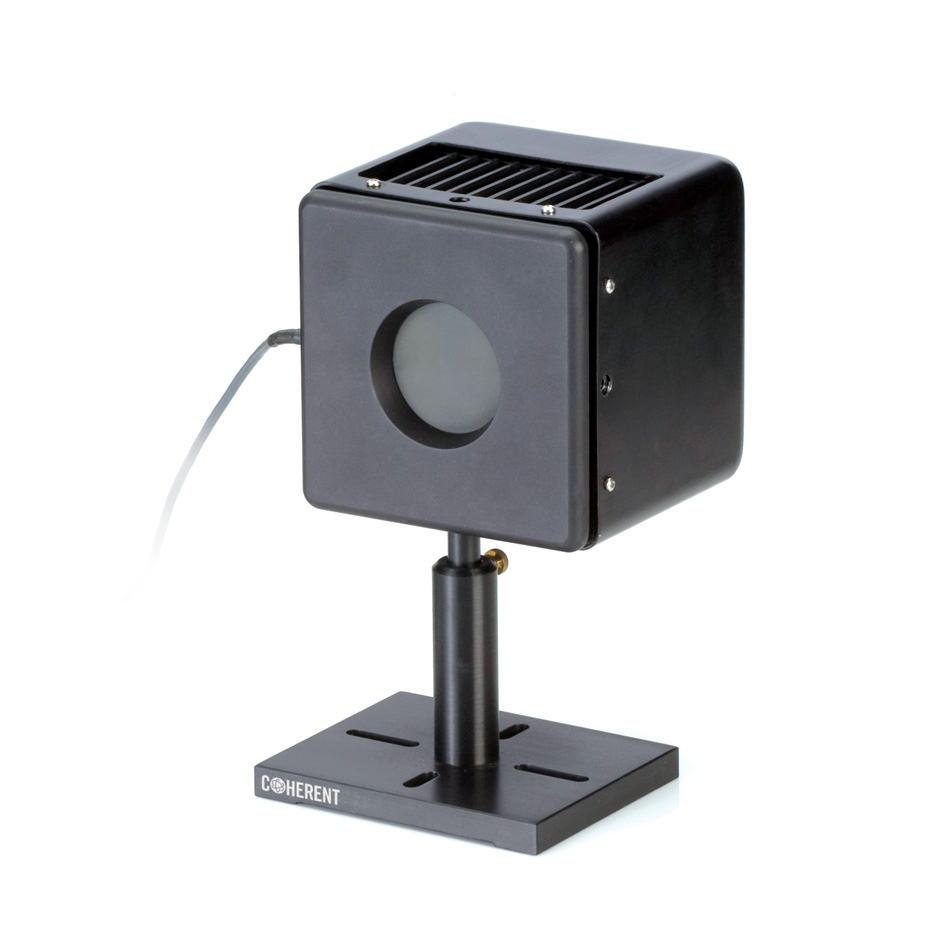

Coherent PM300F-50X Laser Power Sensor

Updated:2024-11-05

Brand: Coherent
Model: PM300F-50X
Description: This PM300F-50X sensor is a fan-cooled laser power sensor intended for measuring lasers up to 300W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PM300F-50X Laser Power Sensor Description：

Datasheet

This PM300F-50X sensor is a fan-cooled laser power sensor intended for measuring lasers up to 300W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.

The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog.

Key Features:

1W to 300W range

50 mm diameter active area

UV coating

0.15 to 1 µm spectral range

Fan-cooled

ISO 17025 accredited

Specifications

Cable Type

PM DB-25

Cooling Type

Fan

Power Range

1W to 300W

Active Area Diameter

50 mm

Detector Coating

Noise Equivalent Power (milliwatts)

5 mW (w/o fan), 100 mW (with fan)

Maximum Intermittent Power (watts)(<5 minutes)

450

Long-Pulse Joules Range (joules)

1 to 300

Wavelength Range (micrometers)

0.15 to 1

Maximum Power Density (kilowatts per square centimeter)

Maximum Energy Density (millijoules per square centimeter)

600, 1064 nm, 10 ns

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±1

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

514

Cable Length (meters)
