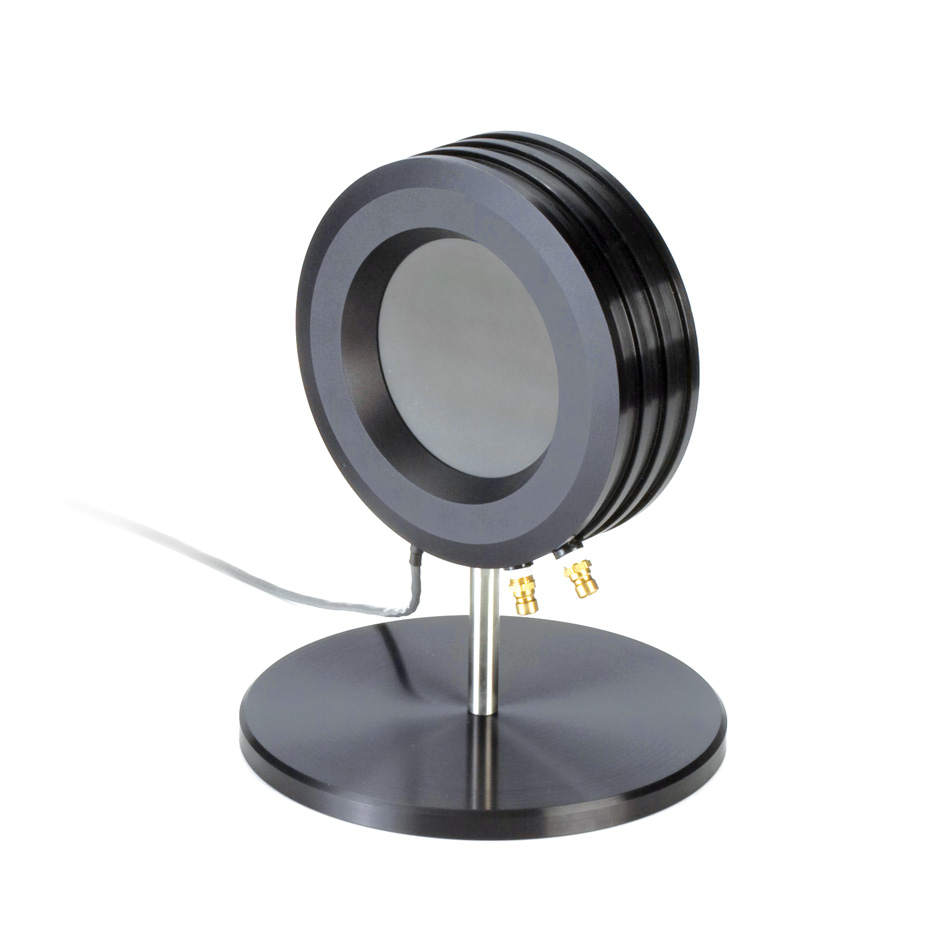

Coherent PM5K-100 Laser Power Sensor

Updated:2024-11-05

Brand: Coherent
Model: PM5K-100
Description: This PM3K-100 sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 5000W. It’s large 100 mm diameter active area is designed for measuring direct diode lasers and large l
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PM5K-100 Laser Power Sensor Description：

Datasheet

This PM3K-100 sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 5000W. It’s large 100 mm diameter active area is designed for measuring direct diode lasers and large laser diode arrays.

The sensor is terminated in a SmartSensor DB25 cable and is directly compatible with all power meters in the catalog. A USB-direct model (PN 1235755) is also available.

Large area, water-cooled kW thermopile sensor for measuring lasers between 100W and 5000W.

Key Features:

100W to 5000W range

100 mm diameter active area

Spectrally flat broadband coating

.25 to 11 µm spectral range

Water-cooled

ISO 17025 accredited

Specifications

Cable Type

PM DB-25

Cooling Type

Water

Power Range

100W to 5000W

Active Area Diameter

100 mm

Detector Coating

Broadband

Noise Equivalent Power (milliwatts)

Maximum Intermittent Power (watts)(<5 minutes)

7500

Wavelength Range (micrometers)

0.25 to 11

Maximum Power Density (kilowatts per square centimeter)

1 to 2.5

Maximum Energy Density (millijoules per square centimeter)

600, 1064 nm, 10 ns

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±3

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

1070

Cable Length (meters)
