Prostat PRF-911PT ESD Packaging Test Kit

Prostat PRF-911PT ESD Packaging Test Kit Description：

PRS-801B Product Manual PRF-911 Product Manual PRS-801B Datasheet PRF-911 Datasheet

The PRF-911 Concentric Ring is to be attached to the PRS-801B Resistance System included in this Packaging Test Kit. This system will also give you surface resistivity by multiplying the surface resistance measurement in ohms by 10 to obtain surface resistivity in ohms/square. The PRF-911PT meets requirements from ANSI/ESD STM11.11, ANSI/ESD STM11.12 snd IEC 61340-2-3. It will also approximate surface and volume resistivity measurements per ASTM D-257.

Measure Anti-Static Bags

The small profile of the PRF-911 Concentric Ring allows the fixture to be inserted into small flexible containers, such as an static shielding, anti-static bags or moisture barrier bags, without having to cut the package.

Maintains Consistent Contact

The PRF-911 incorporates a spring loaded, self-aligning center electrode feature. This unusual feature aids in maintaining consistent contact of the fixture’s highly conductive rubber electrode surfaces with materials under test. This reduces the need for frequent calibration and alignment of the fixture.

A Dual Test Bed for the either Measurement

The PTB-920 Dual Test Bed that’s included in this kit consists of an insulated test surface for ANSI/ESD STM11.11 Surface Resistance Measurements laminated to a steel test plate, which is employed for Volume Resistivity measurements per ANSI/ESD STM11.12. The four inch diameter steel test bed assembly includes a banana receptacle for instrument connections during volume measurements.

Portable, Wide Range System

This ESD Packing Test Kit will accurately meausure resistance from less than 100 ohms (<1.0x102 ohms), to greater than 1.0x1012 Ohms (>1.0x1013 ohms/square). The PRF-911 is designed so that it can be connected to either the ground reference of the PRS-801B or earth ground to minimize the effects of extraneous fields and charges on the measurement.

Features

• Surface resistance measurements per ANSI/ESD STM11.11
• Volume resistance measurements per ANSI/ESD STM11.12
• Meets the requirements of IEC 61340-2-3
• Approximates surface and volume resistivity measurements per ASTM D-257
• Resistance measurements of ESD packaging
• Ideal for measuring static shielding and antistatic bags
• Will also measure the resistance of moisture barrier bags
• Includes the PRS-801B Wide Range Resistance System
• Also includes a 5lbs weight
• Packaged in a hard shell carrying case
• Certificate of Calibration Traceable to NIST included

What's Included

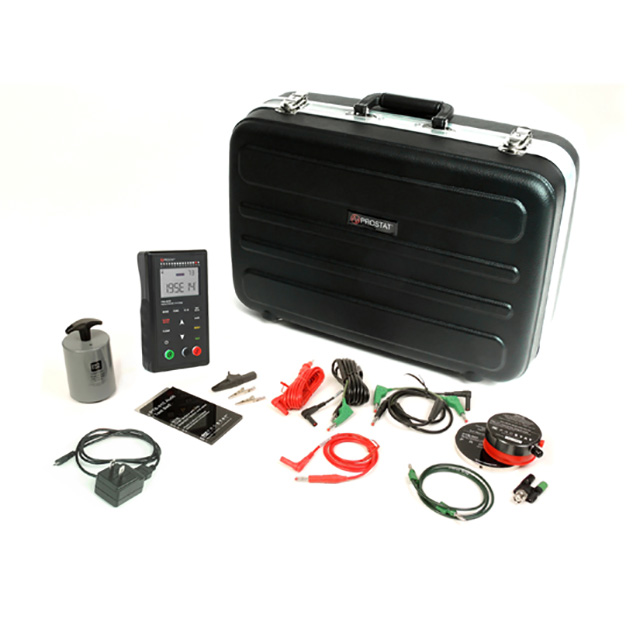

• PRS-801B Resistance Meter
• 801B-012 Li-ion Bbattery Pack
• 800LB 10 foot Silicone Test Lead - Black
• 800LR 10 foot Silicone Test Lead - Red
• 800PSL Premium Shielded Test Lead
• 800TVL High Resistance Voltage Test Lead
• PAS-853S Test Lead Shunt
• PTB-915 Audit Test Bed
• 800B-001 AC/DC Power Supply
• 800B-002 Micro USB Cable
• RS-801BC Bulldog Clip
• PSI-870MAC Metal Clip (2)
• Connect 2.0 PC Utility Software
• PRF-911 Concentric Ring
• PTB-920 Dual Test Bed
• PRF-911GGL 36" Green Test Lead
• PRF-911 BNC Adapter
• PRS-801W 5 lbs Conductive Rubber Electrodes (1)
• PMK-151C Carrying Case
