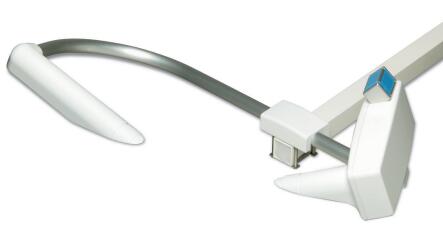

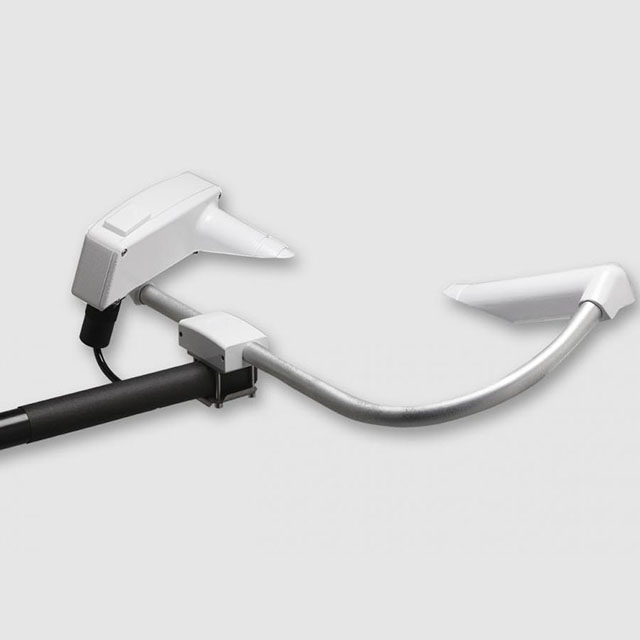

PWD10, PWD20, and PWD20W Visibility sensor

current position:home page>Products>Environmental Instrument>vaisala>

PWD10, PWD20, and PWD20W Visibility sensor

Updated:2023-04-19

Brand: Vaisala
Model: PWD10、PWD20、PWD20W
Product description: Sensors designed for a variety of visibility measurement applications including: road weather, waterway visibility measurement, and wind turbine applications such as obstacle light control.
Data download

Feedback
WeChat

QQ

Online Service

product details

PWD10, PWD20, and PWD20W Visibility sensor Description：

PWD10、PWD12、PWD20 Datasheet PWD20W Datasheet

For accurate visibility measurement

Sensors designed for a variety of visibility measurement applications including: road weather, waterway visibility measurement, and wind turbine applications such as obstacle light control.

Accurate and traceable

The PWD sensor uses a proven forward scattering measurement principle to measure the meteorological optical range (MOR).

Easy installation

All of Vysala's PWD sensors are compact (less than a metre long), lightweight, and come with cables and connectors for easy installation, which can be fitted to any existing mast in a variety of ways.

PWD20W- Ideal for wind turbine applications

The challenging conditions of wind turbines require robust and reliable equipment, such as the visibility sensor PWD20W, which cost-effectively supports obstacle lamp control and a range of other wind applications.

General Survey

Ø Sturdy And Durable

Ø Accurately measure visibility

PWD10、PWD20、PWD20W Visibility sensor Specification：

Visibility (MOR) measurement
PWD10 Measuring range：	10...2000 m
PWD2 and PWD20W Measuring range：	10...20000 m
Working environment parameter
Temp	-40...+60°C
Humidity	0...100 %RH
Import and Export
Measurement output	RS232、RS485、Analog current output, trunk control output
Working voltage	12 VDC...50 VDC（Electron device） 24VAC or 24VDC（When the heater is selected）
Power Consumption
PWD10、PWD20 and PWD20W	3 W（The electronics are equipped with a dew point heater with an input voltage of 12VDC）
Structural parameter
Size	40.4 (W) x 69.5 (L) x 19.9. (H) cm
Weight	3 kg (7lb)
