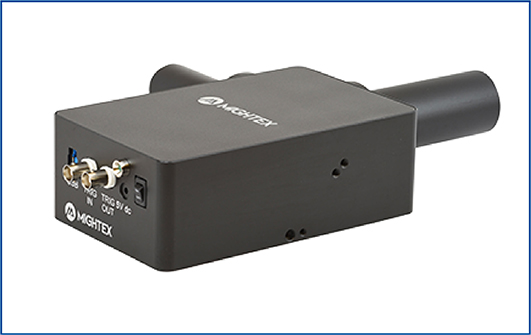

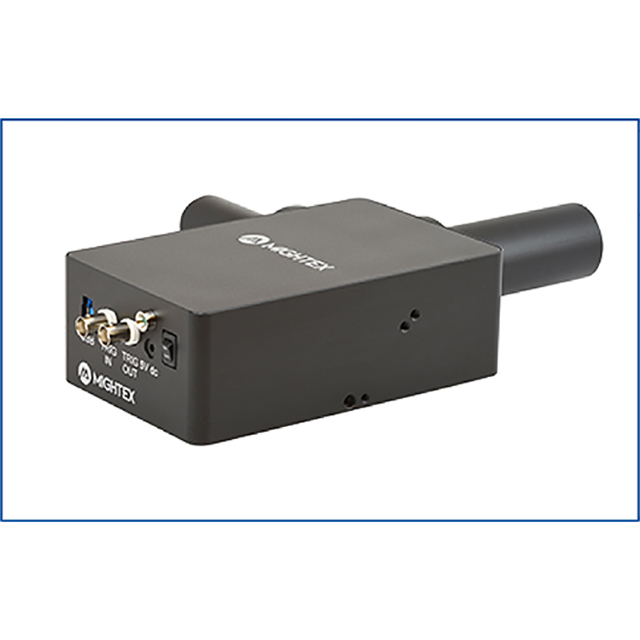

Polygon DMD Pattern Illuminator

Simultaneous Optogenetic Stimulation of Individual Cells or Sub-Cellular Components

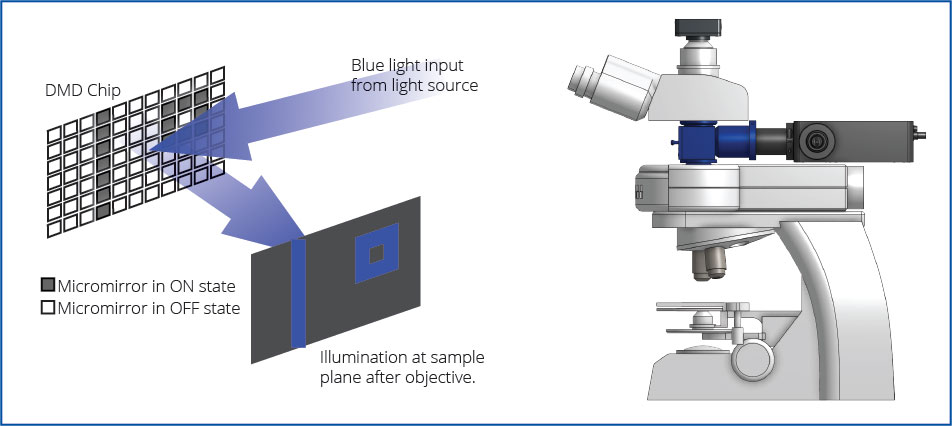

The Polygon enables scientists to precisely control where light will hit their sample. With subcellular resolution, the Polygon can illuminate any cellular feature in any shape or size simultaneously on their sample.

Stimulation of Any Optogenetics or Photostimulation Probe

The Polygon provides great flexibility when it comes down to wavelength selection. From UV to VIS/NIR range, the Polygon can project light of different colours suitable for your light-sensitive constructs.

Spatio-Temporal and Intensity Control of Light

Control the initiation, duration, and intensity of light stimulation patterns using the Polygon. Create different waveforms to control the light intensity and duration outputted from the Polygon.

In Vitro and In Vivo Optogenetic Stimulation

The Polygon can be used with a wide-range light sources, including LEDs and lasers. The Polygon is also compatible with Mightex’s OASIS Implant for freely-behaving imaging and optogenetics and OASIS Macro for cortex-wide imaging and optogenetics.

UV Micropatterning with Sub-Micron Resolution

The Polygon is compatible with UV light sources (350nm+) and provides sub-micron illumination for photopatterning and microfabrication experiments.

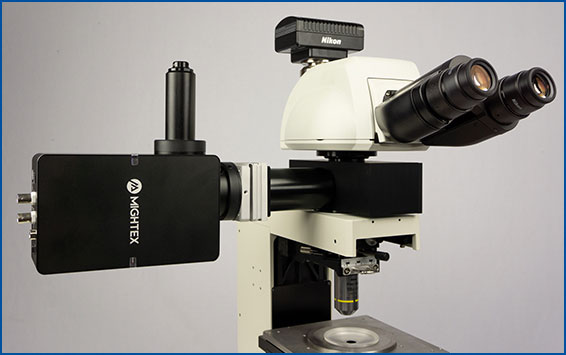

Integrates into Any Electrophysiology, Two-Photon or Confocal Microscope Setup

The Polygon is designed to be coupled into the infinity space of any microscope model (Leica, Nikon, Olympus, Zeiss) with Mightex’s microscope-specific adapters. The Polygon comes with BNC connectorized TTL trigger input and output for easy synchronization with different lab equipment.

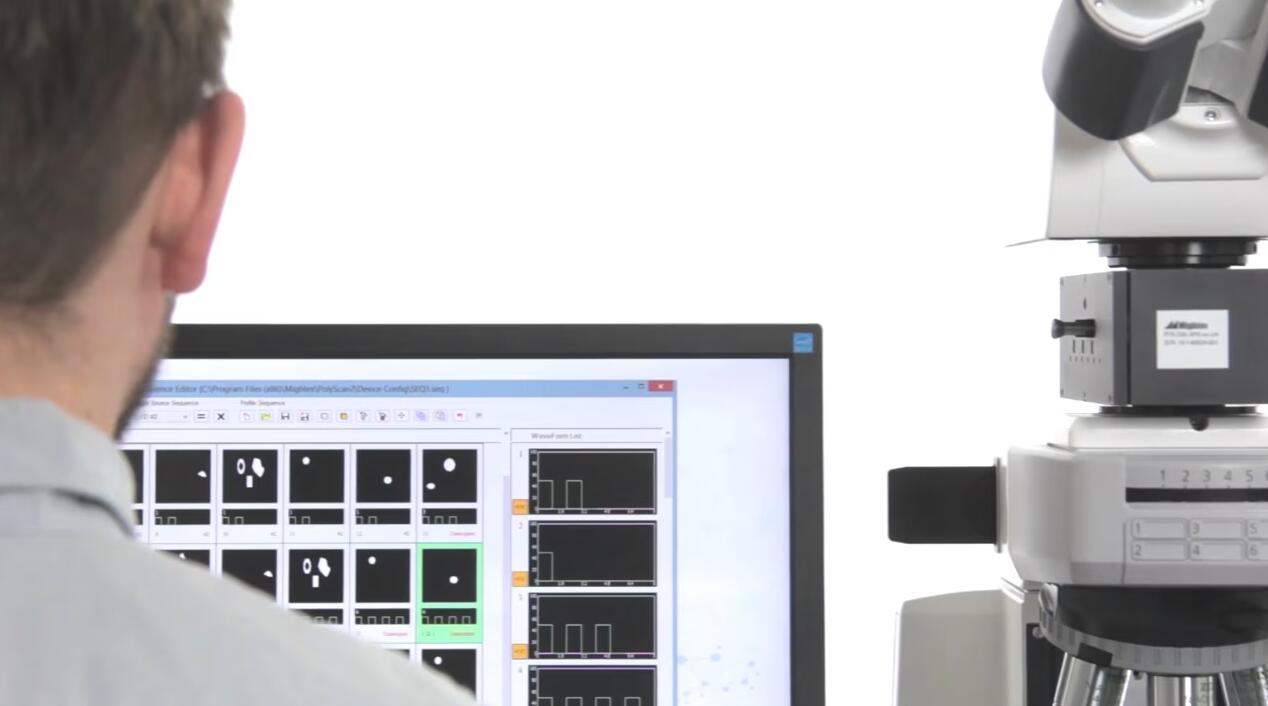

Powerful User-Friendly Software for Life Science Experiments

Mightex’s PolyScan software platform is bundled with every Polygon to help you execute sophisticated patterned illumination experiments for your research.
