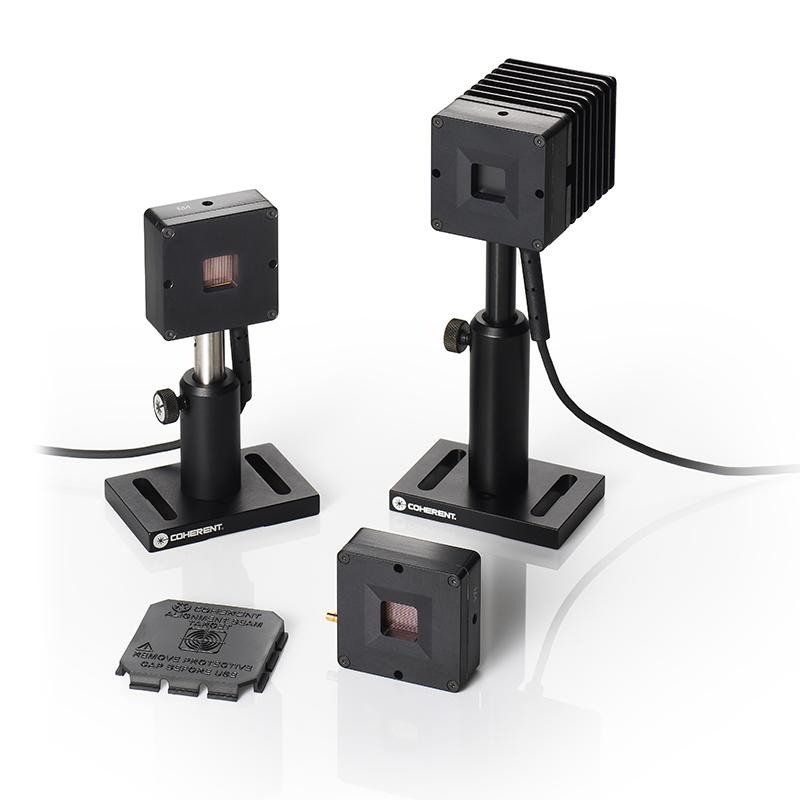

Coherent PowerMax-Pro 15 mm UP Developer’s Kit

Coherent PowerMax-Pro 15 mm UP Developer’s Kit Description：

Datasheet User's Manual

PowerMax-Pro thin-film transverse thermoelectric power sensing technology (Patent #9,012,848) offers the broad wavelength sensitivity and large dynamic range of a thermopile with the fast response speed of small infrared detectors. The microsecond response time enables nearly instant power measurement without any overshoot, and can provide pulse energy, peak power, and rise/fall time with modulated sources.

These detectors are designed for integration into laser systems for real-time QC monitoring and in-line control. PowerMax-Pro sensors alleviate issues common to semiconductor and infrared detectors that have smaller active areas and steeper spectral response curves.

FEATURES & BENEFITS

High-speed 10 microsecond response time

High-power handling to 9 W

Supports lasers from 400 nm to 11 microns

Broadband coating available with flat spectral response

Large 15 mm square active area

APPLICATIONS

Laser power monitoring of CW or modulated laser systems

Active feedback control within laser processing systems

Specifications
