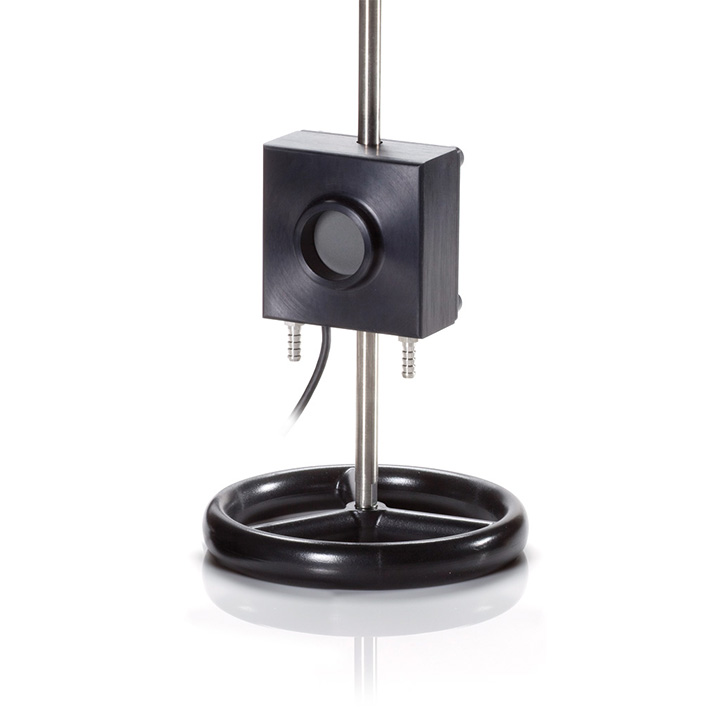

Coherent PowerMax-RS LM-1000 Laser Power Sensor

Updated:2024-11-05

Brand: Coherent
Model: PowerMax-RS LM-1000
Description: This PowerMax-RS LM-1000 sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. A DB25 model (PN 1098409) is available.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-RS LM-1000 Laser Power Sensor Description：

Datasheet User's Manual

This PowerMax-RS LM-1000 sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. A DB25 model (PN 1098409) is available.

These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.

Water-cooled thermopile for measuring lasers up to 1000W with beam position measurement. Direct RS232 interface.

Key Features:

50W to 1000W range

38 mm diameter active area

Beam position measurement

Spectrally flat broadband coating

Compact OEM sensor

0.25 to 10.6 µm spectral range

Water-cooled

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type

RS232

Cooling Type

Water

Power Range

50 to 1000W

Active Area Diameter

38 mm

Detector Coating

Broadband

Noise Equivalent Power (milliwatts)

Wavelength Range (micrometers)

0.25 to 10.6 µm

Maximum Power Density (kilowatts per square centimeter)

1 to 2.5 kW/cm² - power dependent

Maximum Energy Density (millijoules per square centimeter)

500 mJ/cm² 10 ns, 1064 nm

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±5

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

10600

Cable Length (meters)

0.3
