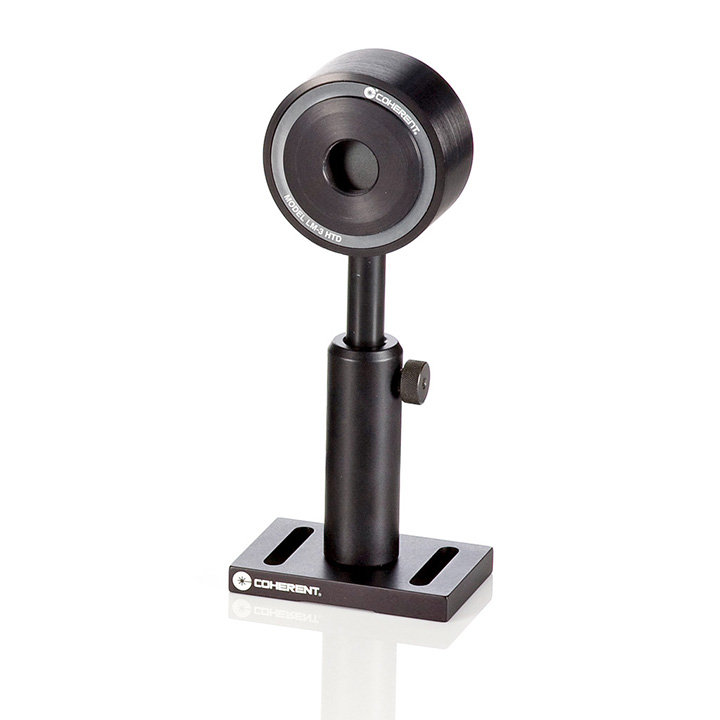

Coherent PowerMax-RS LM-3 Laser Power Sensor

Updated:2024-11-05

Views:115

Product Details

Coherent PowerMax-RS LM-3 Laser Power Sensor Description:

Datasheet User's Manual

RS232-enabled 10 mW to 3W laser power sensor with beam position sensing, 0.25 to 10.6 µm spectral range, 19 mm diameter active area.

This PowerMax-RS LM-3 sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. A DB25 model (PN 1098328) is available.

SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available.

These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.

Key Features:

10 mW to 3W range

19 mm diameter active area

Beam position measurement

Spectrally flat broadband coating

0.25 to 10.6 µm spectral range

Convective air-cooled

Fiber adapters available

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type
RS232
Cooling Type
Air
Power Range
10 mW to 3W
Active Area Diameter
19 mm
Detector Coating
Broadband
Noise Equivalent Power (milliwatts)
0.4
Maximum Intermittent Power (watts)(<5 minutes)
10
Long-Pulse Joules Range (joules)
0.5 to 10
Wavelength Range (micrometers)
0.25 to 10.6 µm
Maximum Power Density (kilowatts per square centimeter)
6 kW/cm²
Maximum Energy Density (millijoules per square centimeter)
600 mJ/cm² 10 ns, 1064 nm
Response Time, Speed-up On, 0% to 95% (seconds)
2
Window
None
Diffuser
None
Calibration Uncertainty (%)(k=2)
±2
Power Linearity (%)
±1
Spectral Compensation Accuracy (%)
±1.5
Calibration Wavelength (nanometers)
10600
Cable Length (meters)
0.3
