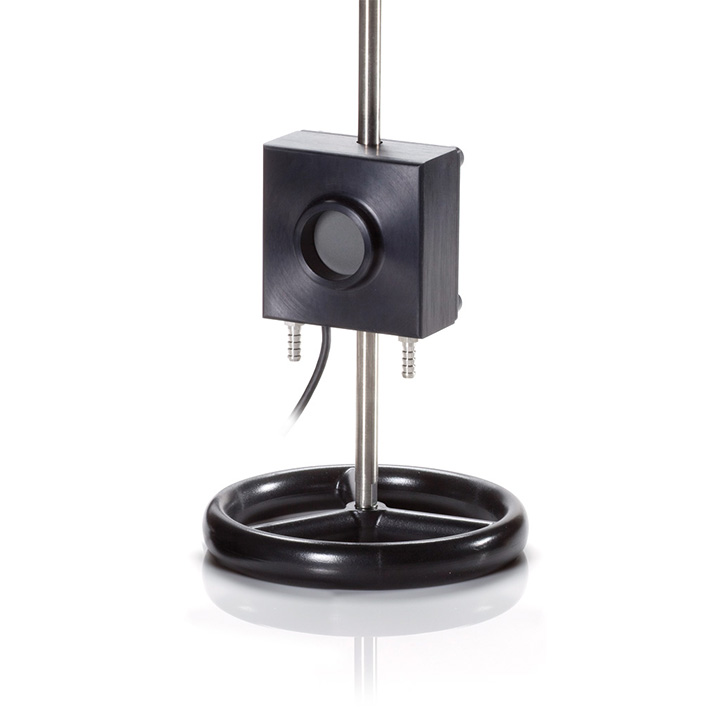

Coherent PowerMax-RS LM-5000 Laser Power Sensor

Updated:2024-11-05

Brand: Coherent
Model: PowerMax-RS LM-5000
Description: RS232-enabled, 50W to 5000W laser power sensor with beam position sensing, 0.25 to 10.6 µm spectral range, 56 mm diameter active area.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-RS LM-5000 Laser Power Sensor Description：

Datasheet

This PowerMax-RS LM-5000 sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. A DB25 model (PN 1098421) is available.

These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.

Water-cooled thermopile for measuring lasers up to 5000W with beam position measurement. Direct RS232 interface.

Key Features:

50W to 5000W range

56 mm diameter active area

Beam position measurement

Spectrally flat broadband coating

0.25 to 10.6 µm spectral range

Water-cooled

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type

RS232

Cooling Type

Water

Power Range

50 to 5000W

Active Area Diameter

56 mm

Detector Coating

Broadband

Noise Equivalent Power (milliwatts)

Wavelength Range (micrometers)

0.25 to 10.6 µm

Maximum Power Density (kilowatts per square centimeter)

1 to 2.5 kW/cm² - power dependent

Maximum Energy Density (millijoules per square centimeter)

500 (1064 nm, 10 ns)

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±5

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

10600

Cable Length (meters)

0.3
