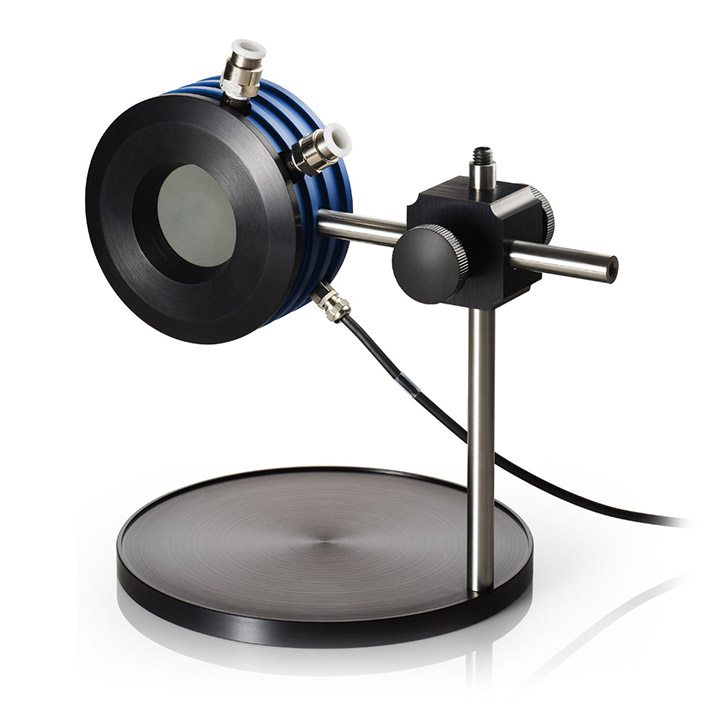

Coherent PowerMax-RS PM1K+ Power Sensor

Updated:2024-11-11

Brand: Coherent
Model: PowerMax-RS PM1K+
Description: This PowerMax-RS PM1K+ sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 1000W. It has a large 50 mm diameter active area, and the spectrally flat BB+ coating is highl
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-RS PM1K+ Power Sensor Description：

Datasheet User's Manual

This PowerMax-RS PM1K+ sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 1000W. It has a large 50 mm diameter active area, and the spectrally flat BB+ coating is highly resistant to laser damage.

The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller.

The RS232 cable must be powered by 5 VDC. An optional external power supply (PN 1105557) is available.

Water-cooled kW thermopile sensor with BB+ coating for measuring lasers between 5W and 1000W. Direct RS232 interface

Key Features:

5W to 1000W range

50 mm diameter active area

Spectrally flat broadband BB+ coating

0.19 to 11 µm spectral range

Direct RS232 interface

Water-cooled

ISO 17025 accredited

Specifications

Cable Type

RS232

Cooling Type

Water

Power Range

5W to 1000W

Active Area Diameter

50 mm

Detector Coating

BB+

Noise Equivalent Power (milliwatts)

100

Maximum Intermittent Power (watts)(<5 minutes)

2000

Wavelength Range (micrometers)

0.19 to 11

Maximum Power Density (kilowatts per square centimeter)

10 to 20

Maximum Energy Density (millijoules per square centimeter)

600, 1064 nm, 10 ns

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±3

Power Linearity (%)

±2

Calibration Wavelength (nanometers)

1070, 10600

Cable Length (meters)

Spectral Compensation Accuracy (%)

±1.5
