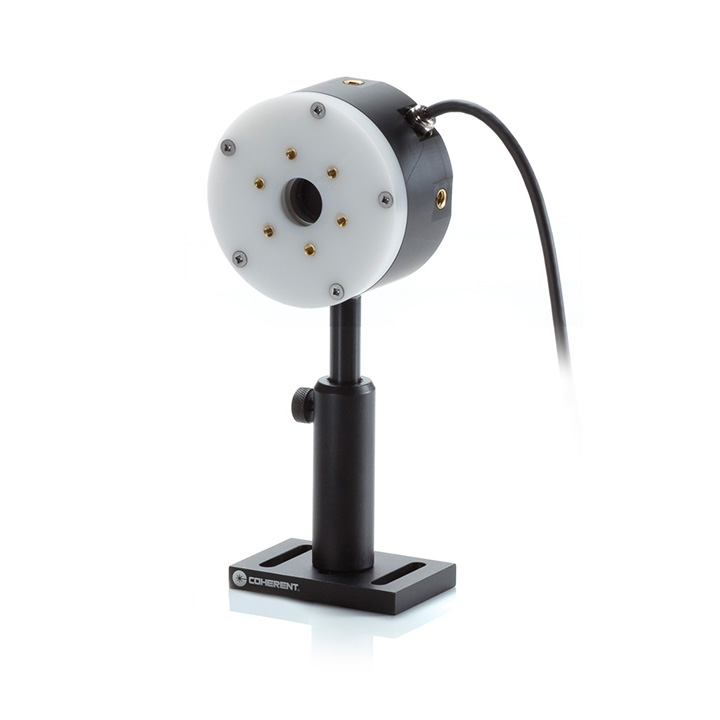

Coherent PowerMax-RS PS19Q Low Power Sensor

Coherent PowerMax-RS PS19Q Low Power Sensor Description：

Datasheet User's Manual

This PowerMax-RS PS19Q sensor is a thermally stabilized, amplified thermopile power sensor intended for measuring low power lasers down into the 100 µW range, making it ideal for measuring laser diodes, HeNe and ion lasers, and other low power laser sources. It includes a quartz window to more effectively eliminate thermal background radiation. Note that the window limits the spectral range to 0.3 to 2.1 µm.

The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. DB25 (PN 1098341) and USB direct (PN 1168343) are available.

Low power thermopile for measuring pulsed & CW lasers between 100 µW and 1W. Includes a quartz window to more effectively eliminate thermal background radiation. Direct RS232 interface

Key Features:

100 µW to 1W range

19 mm diameter active area

Spectrally flat broadband coating

0.3 to 2 µm spectral range

Quartz window

Convective air-cooled

Direct RS232 interface

ISO 17025 accredited

Specifications
