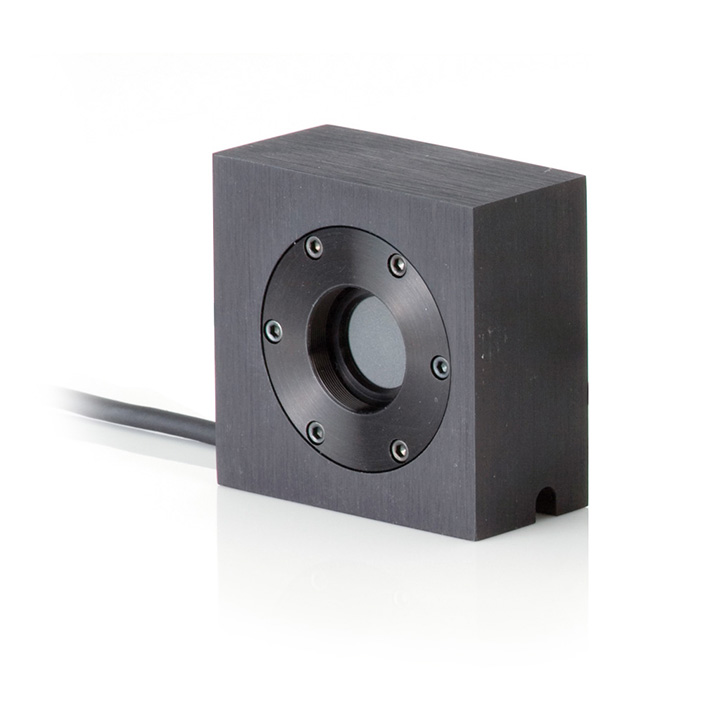

Coherent PowerMax-USB LM-150 LS Laser Power Sensor

Coherent PowerMax-USB LM-150 LS Laser Power Sensor Description：

Datasheet User's Manual

This PowerMax-USB LM-150 LS sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098452) is available.This LM-150 LS version has a rectangular form factor, whereas the LM-150 FS (PN 1098394) is round.

SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available when used with 1.035-40M Adapter Ring (PN 33-9432-000).

These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.

Compact convectively cooled thermopile, with direct USB interface, for measuring pulsed & CW lasers intermittently up to 150W with beam position measurement:

2 minutes at 150W

5 minutes at 100W

20 minutes at 40W

Key Features:

100 mW to 150W range (intermittent)

19 mm diameter active area

Beam position measurement

Spectrally flat broadband coating

0.25 to 10.6 µm spectral range

Conductively cooled

Fiber adapters available

Direct USB interface

ISO 17025 accredited

Specifications
