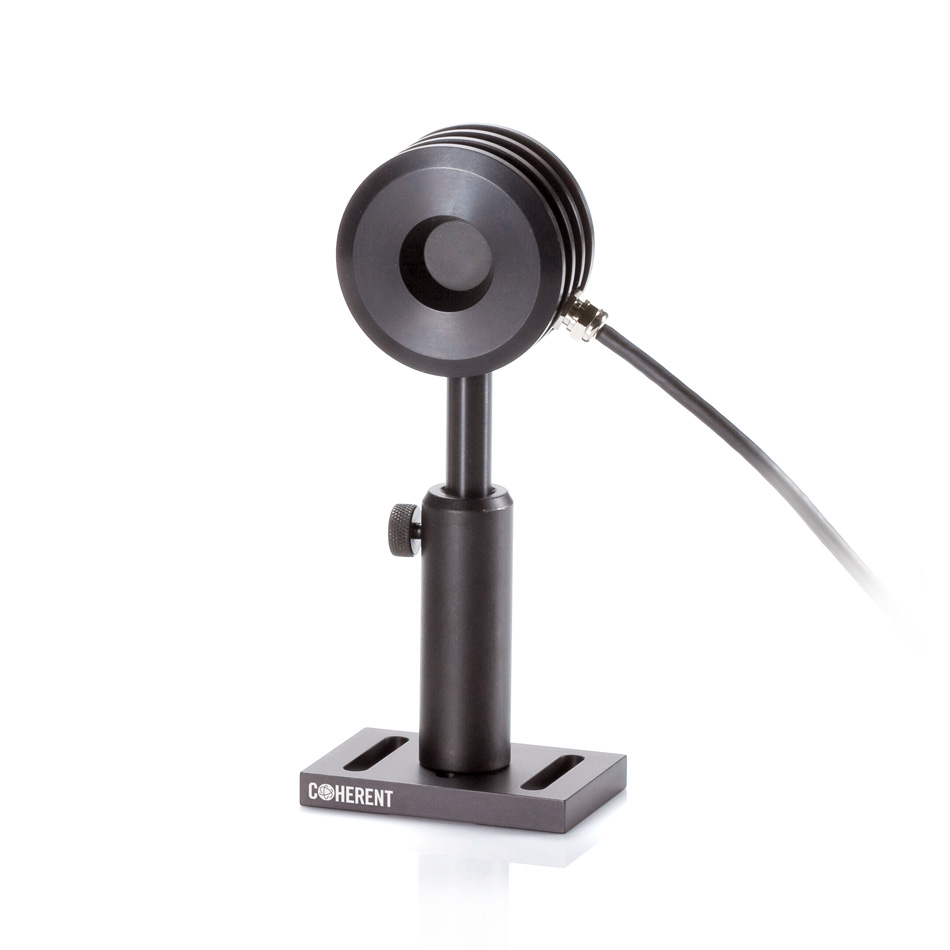

Coherent PowerMax-USB PM10X Power Sensor

Updated:2024-11-12

Brand: Coherent
Model: PowerMax-USB PM10X
Description: This PowerMax-USB PM10X sensor is a compact laser power sensor intended for measuring lasers up to 10W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spec
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-USB PM10X Power Sensor Description：

User's Manual

This PowerMax-USB PM10X sensor is a compact laser power sensor intended for measuring lasers up to 10W. It incorporates a UV absorber coating that is optimized for use at ultraviolet wavelengths. Spectral compensation is available from 157 nm to 1064 nm.

The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098423) is available.

Convectively cooled thermopile sensor with UV coating for measuring pulsed & CW lasers between 10 mW and 10W. Direct USB interface.

Key Features

5 mW to 10W range

19 mm diameter active area

UV coating

0.15 to 1 µm spectral range

Convective air-cooled

Direct USB interface

ISO 17025 accredited

Specifications

Cable Type

USB

Cooling Type

Air

Power Range

5 mW to 10W

Active Area Diameter

19 mm

Detector Coating

Noise Equivalent Power (milliwatts)

0.2

Maximum Intermittent Power (watts)(<5 minutes)

Long-Pulse Joules Range (joules)

0.5 to 10

Wavelength Range (micrometers)

0.15 to 1 µm

Maximum Power Density (kilowatts per square centimeter)

6 kW/cm²

Maximum Energy Density (millijoules per square centimeter)

600 J/cm² 10 ns, 1064 nm

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±1

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

514

Cable Length (meters)

2.5
