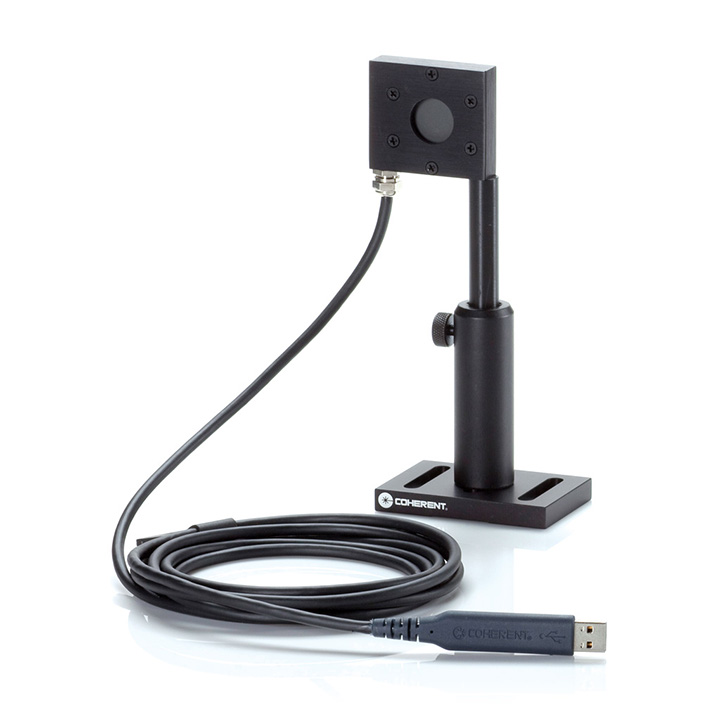

Coherent PowerMax-USB PM2 Power Sensor

Updated:2024-11-13

Brand: Coherent
Model: PowerMax-USB PM2
Description: This PowerMax-USB PM2 sensor is a compact laser power sensor intended for measuring lasers up to 2W.The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098329)
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-USB PM2 Power Sensor Description：

Datasheet User's Manual

This PowerMax-USB PM2 sensor is a compact laser power sensor intended for measuring lasers up to 2W.The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098329) is available.

Compact thermopile sensor for measuring pulsed & CW lasers between 10 mW and 2W. Direct USB interface.

Key Features:

5 mW to 2W range

19 mm diameter active area

Spectrally flat broadband coating

0.19 to 11 µm spectral range

Convective air-cooled

Direct USB interface

ISO 17025 accredited

Specifications

Cable Type

USB

Cooling Type

Air

Power Range

5 mW to 2W

Active Area Diameter

19 mm

Detector Coating

Broadband

Noise Equivalent Power (milliwatts)

0.2

Maximum Intermittent Power (watts)(<5 minutes)

Long-Pulse Joules Range (joules)

0.5 to 2

Wavelength Range (micrometers)

0.19 to 11 µm

Maximum Power Density (kilowatts per square centimeter)

6 kW/cm²

Maximum Energy Density (millijoules per square centimeter)

600 mJ/cm² 10 ns, 1064 nm

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±2

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

10600

Cable Length (meters)

2.5
