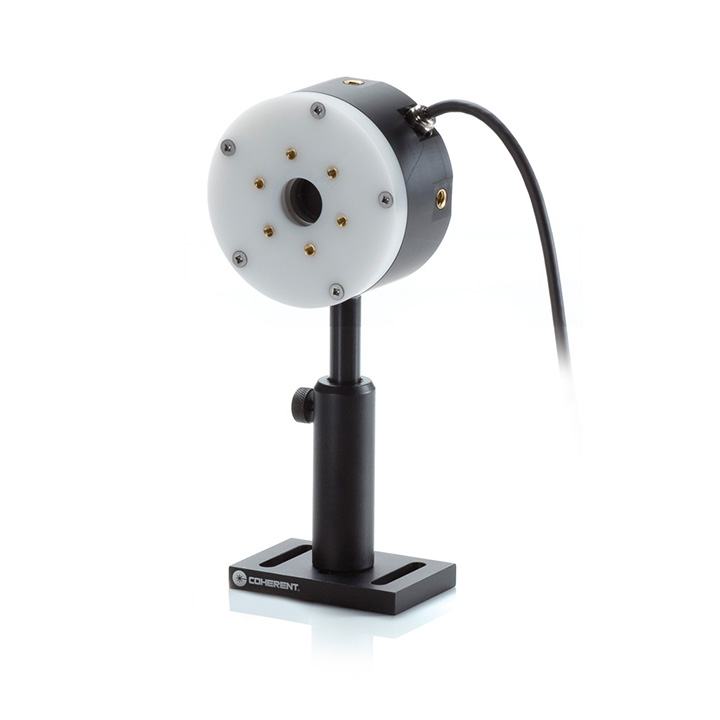

Coherent PowerMax-USB PS19Q Low Power Sensor

Coherent PowerMax-USB PS19Q Low Power Sensor Description：

Datasheet User's Manual

This PowerMax-USB PS19Q sensor is a thermally stabilized, amplified thermopile power sensor intended for measuring low power lasers down into the 100 µW range, making it ideal for measuring laser diodes, HeNe and ion lasers, and other low power laser sources. It includes a quartz window to more effectively eliminate thermal background radiation. Note that the window limits the spectral range to 0.

The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098341) is available.

For a wider spectral range, the similar PowerMax-USB PS19 model (PN 1174261) does not include the quartz filter, enabling a spectral range of 0.19 to 11 µm. This model can also be used with fiber adapters.

Low power thermopile for measuring pulsed & CW lasers between 100 µW and 1W. Includes a quartz window to more effectively eliminate thermal background radiation. Direct USB interface

Key Features:

100 µW to 1W range

19 mm diameter active area

Spectrally flat broadband coating

0.3 to 2 µm spectral range

Quartz window

Convective air-cooled

Direct USB interface

ISO 17025 accredited

Specifications
