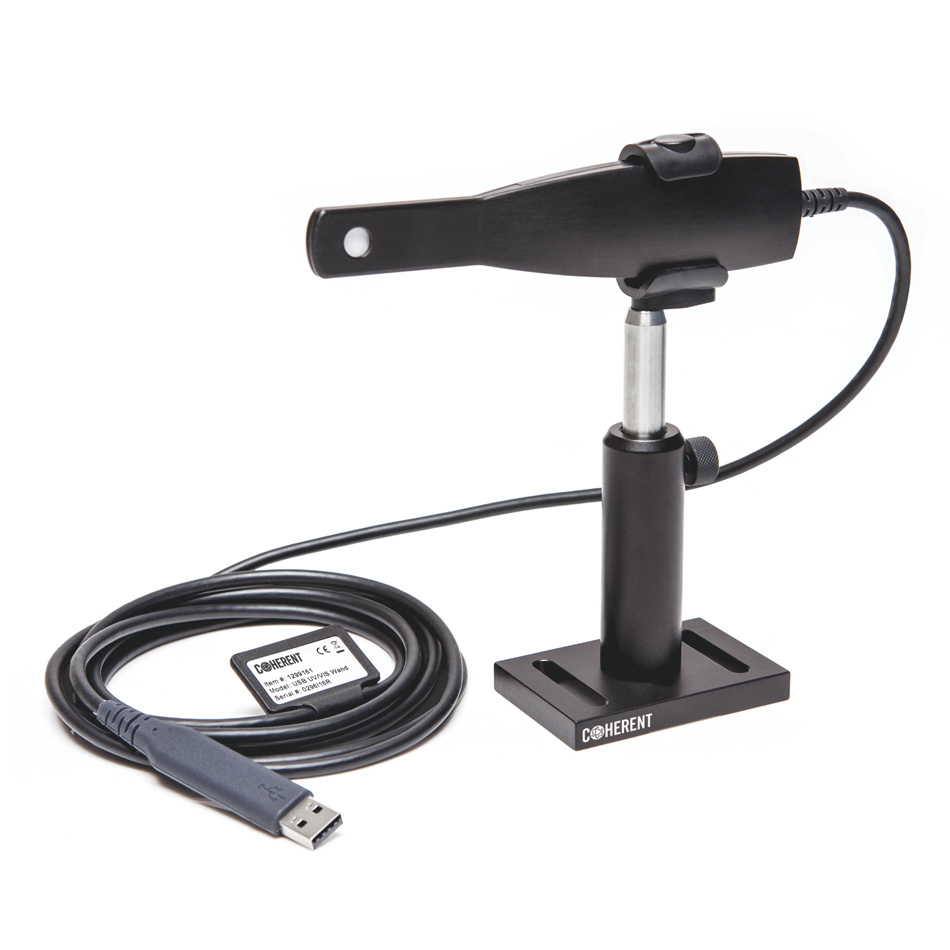

Coherent PowerMax-USB UV/VIS Wand Power Sensor

Coherent PowerMax-USB UV/VIS Wand Power Sensor Description：

Datasheet User's Manual

The PowerMax-USB UV/VIS Wand sensor incorporates a Silicon photodiode in a thin 5.5 mm thick profile, for measurement of power from 5 µW to hundreds of milliwatts in tight spaces, such as in between optical components. The measurement power varies significantly by wavelength. It works with CW sources as well as pulsed lasers greater than 100 pps.

Several accessories, including fiber optic adapters, are available. FC fiber adapter (PN 1211489), FC-APC fiber adapter (PN 1220619), SMA fiber adapter (PN 1220621), collimated beam adapter (PN 1211488), 7 mm aperture adapter (PN 1220622).

Thin 5.5 mm profile, low power silicon semiconductor power sensor with ND2 filter for measuring lasers between 5 µW to >100 mW. Direct USB interface.

Key Features:

5 µW to >140 mW range (wavelength dependent)

Thin 5.5 profile to fit in tight spaces

8 mm diameter active area

Silicon detector with ND2 filter

325 to 1064 nm spectral range

Direct USB interface

Fiber optic adapters available

ISO 17025 accredited

Specifications
