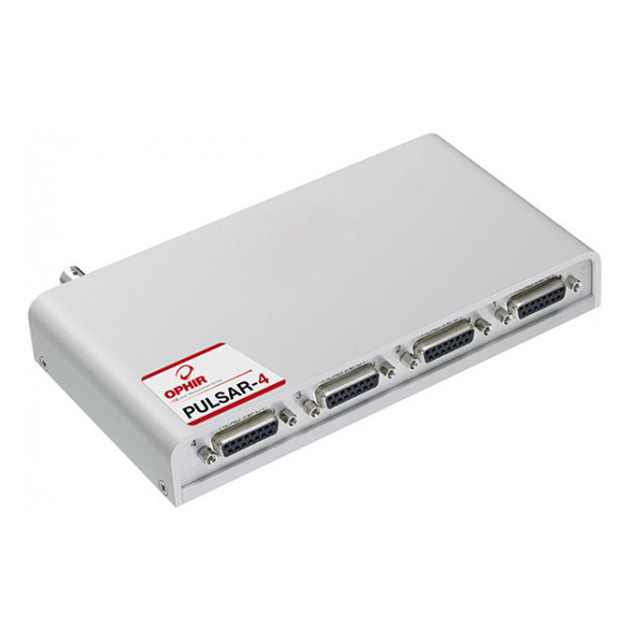

Pulsar-4 7Z01201 Pulsar 4 Channel Interface

Updated:2023-05-26

Brand: Ophir
Model: Pulsar-4
Product description: Ophir’s 4 channel Pulsar interface turns your PC or laptop into a full fledged Ophir multi-channel laser power/energy meter. Just install the software, plug the laser measurement sensor into the Pulsa
Data download

Feedback
WeChat

QQ

Online Service

product details

Pulsar-4 7Z01201 Pulsar 4 Channel Interface Description:

Ophir’s 4 channel Pulsar interface turns your PC or laptop into a full fledged Ophir multi-channel laser power/energy meter. Just install the software, plug the laser measurement sensor into the Pulsar and the USB cable from the Pulsar to the PC USB port. With the Pulsar-4, you can connect up to 4 laser measurement sensors to each module, monitor each pulse at up to 25 kHz and utilize external trigger.

From laser measurement sensor to interface to PC.

4 channel model

Plug and play with most Ophir laser measurement sensors.

Record every energy pulse at up to 25 kHz.

Measure missing pulses & trigger output with external trigger.

Log power and energy, average, statistics, histograms and more with included StarLab application.

System Integrator Tools included: LabVIEW VIs, COM Object Interface.

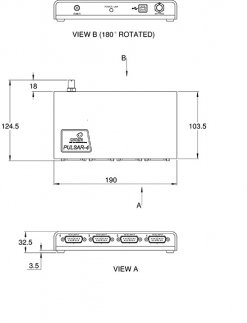

Pulsar-4 7Z01201 Pulsar 4 Channel Interface Drawing：

Pulsar-4 Drawing

Pulsar-4 7Z01201 Pulsar 4 Channel Interface Specification：

Thermal Sensors	Yes
Photodiode Sensors	Yes
Pyroelectric Sensors	Yes
BeamTrack Sensors	No
Statistics	Yes
Analog Out	No
Communication	USB
Trigger Input & Output	Yes
Power Supply	12V Power Supply (included)
Ethernet	N/A
RS232	N/A
GPIB	N/A
USB	25,000Hz
Bluetooth	N/A
On-Board Data Storage	No
Automation Interface	Yes
Labview VI's	Yes
