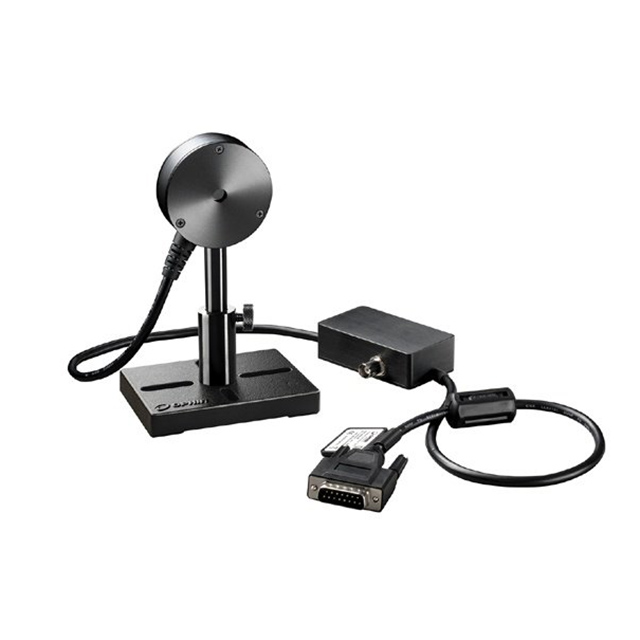

RM9-THz 7Z02956 Pyroelectric terahertz Radiometer

current position:home page>Products>optical instrument>Ophir>

RM9-THz 7Z02956 Pyroelectric terahertz Radiometer

Updated:2023-06-30

Brand: Ophir
Model: RM9-THz
Product description: RM9 THz Radiometer is a probe used to measure low-power continuous or quasi continuous wave light sources. This probe is specifically designed for use in the terahertz range. RM9-THz uses a pyroelectr
Data download

Feedback
WeChat

QQ

Online Service

product details

RM9-THz 7Z02956 Pyroelectric terahertz Radiometer Description：

RM9 THz Radiometer is a probe used to measure low-power continuous or quasi continuous wave light sources. This probe is specifically designed for use in the terahertz range. RM9-THz uses a pyroelectric probe and a lock-in (phase-locked) amplifier, with (in conjunction with) an 18Hz chopper (not included, using RMC1 or other choppers). The power range of RM9-THz is from 100nW to 100mW, with an aperture of 8mm, covering a spectral range of 0.1THz to 30THz.

RM9-THz 7Z02956 Pyroelectric terahertz Radiometer Specification：

Absorber Type	Pyro with THz w/o Chopper
Aperture	Ø8mm
Spectral Range	0.7-10THz
Power Range	100nW-100mW
Energy Range	N.A.
Dimensions	Ø62 W x 21 D (mm)
Max Pulse Energy	N.A.
Max Average Power Density	5W/cm²
Response Time	3.5S
Max Energy Density (for < 100ns)	N.A.
Max Energy Density (for 2ms)	N.A.
Max Average Power	100nW
