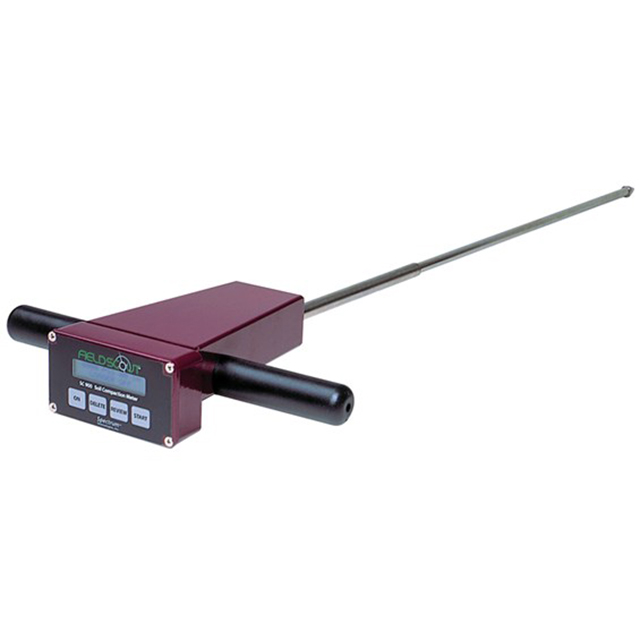

FieldScout SC 900 Soil Compaction Meter

FieldScout SC 900 Soil Compaction Meter Description：

Product Manual

Help make decisions regarding areas of the field that require tillage, changes to crop rotation, and planting of cover crops

Includes 1/2 in and 3/4 in cone tip

Takes compaction readings to a depth of 18 in (45 cm)

Exclusive ultrasonic depth sensor captures readings in 1 in (2.5 cm) increments

Penetration resistance measured by internal load cell

Compaction data is displayed in PSI or kPa (1 psi = 6.9 kPa)

Connects to any GPS receiver with serial output option

Equipped with internal data logger and RS-232 port

Records 772 measurements (579 with added GPS/DGPS option)

Configure and download meter with FieldScout® software and USB-to-3.5mm-Stereo-Plug Adapter (Item 3661U.(included)

Includes carrying case and depth target

Specifications

Measurement Units: Cone Index (PSI or kPa)

Resolution: 1 in (2.5 cm), 5 PSI (35 kPa)

Accuracy: ± 0.5 in (1.25 cm) Depth, ±15 PSI (103 kPa) Pressure

Range: 0 to18 in (0 to 45 cm), 0 to 1,000 PSI (0 to 7,000 kPa)

Battery/Life: 4 AAA alkaline batteries; approximately 12-month life

Data Logger Capacity: 772 profiles without GPS; 579 profiles with GPS
