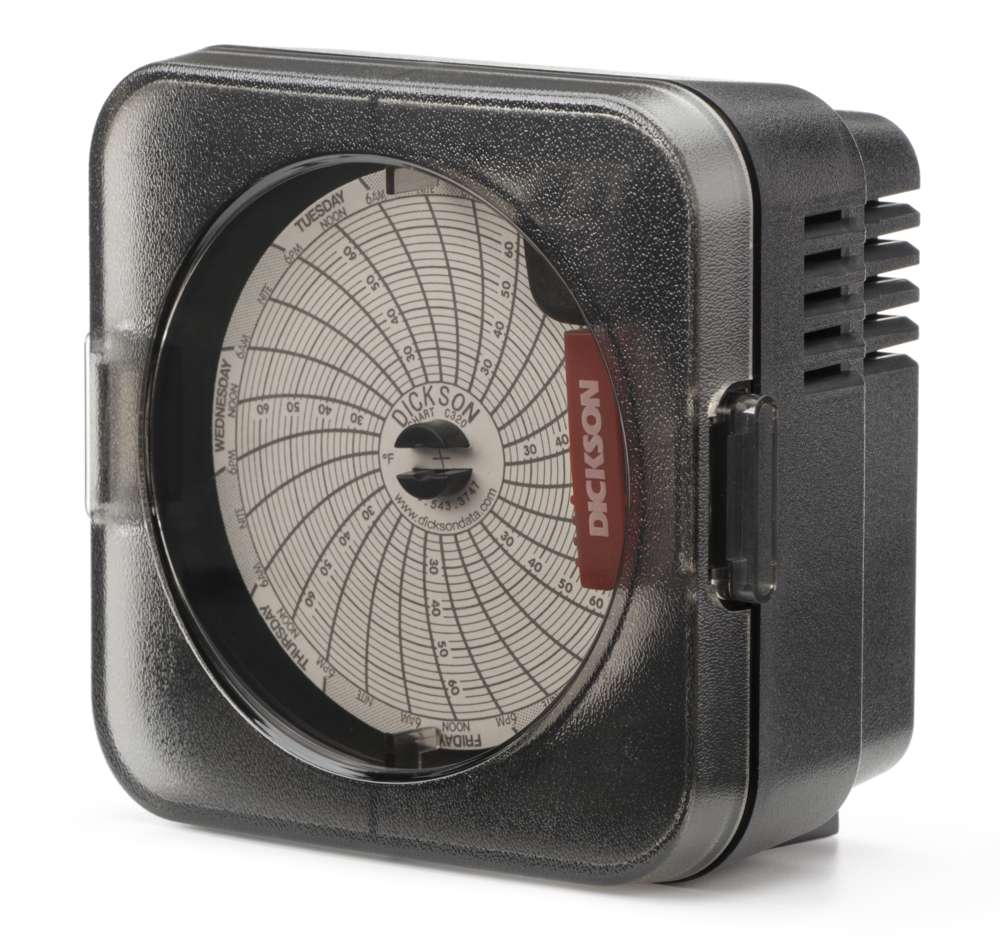

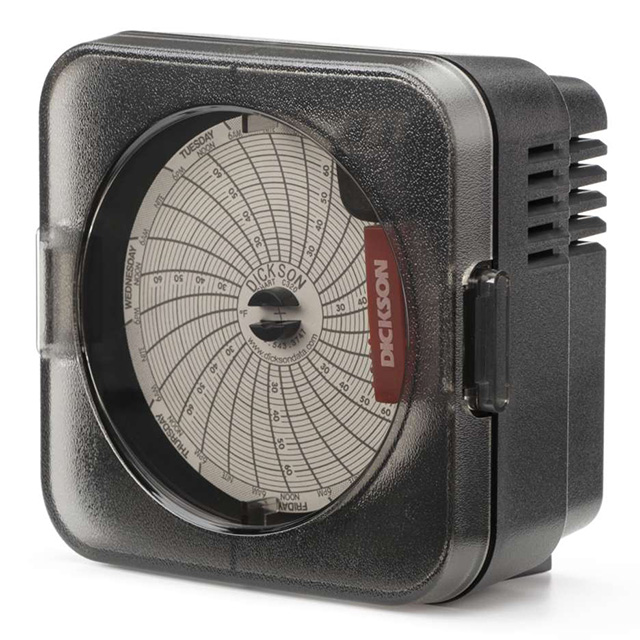

DICKSON SC397 3″ Chart Recorder

Updated:2024-10-23

Brand: DICKSON
Model: SC397
Description: 3″ Mini Temperature Chart Recorder. Small enough to fit in your hand, ideal when space is a concern. Dickson 3-inch (76mm) temperature chart recorders offer a unique monitoring alternative. Great f
Data download

Feedback
WeChat

QQ

Online Service

Product Details

DICKSON SC397 3″ Chart Recorder Description：

Datasheet

3″ Mini Temperature Chart Recorder. Small enough to fit in your hand, ideal when space is a concern. Dickson 3-inch (76mm) temperature chart recorders offer a unique monitoring alternative. Great for tight spaces and tight budgets.

Specifications

Ambient Operating RH Conditions	0-95% RH non-condensing
Ambient Operating Temperature Conditions	-22.0 to 122.0F (-30.0 to 50.0C)
Approvals	CE
Battery Life (Avg)	3 Years
Calibration Options	N100, N300, N400
Channels	CH1: Temperature
Chart Rotation Speed	24 Hour or 7 Day
Dimensions	2.4 x 5.2 x 5.2in
Display Accuracy	1.8F
Display Dimensions	1.8 x 0.36in
Display Resolution	0.1
Display Type	LCD
Enclosure	Black ABS and Polycarbonate
Included Accessories	“One AA Battery, Red Pen and Quick Start Guide. *Charts sold separately”
IP Rating	21
Mounting Options	Free Standing or Wall Mounted
Power Source	Battery; One AA Battery (User Replaceable)
Response Time	11 Minutes to 63% of Full Scale (in air moving 5′ per second)
Temperature Accuracy	Â± 2% Of Full Scale
Temperature Range	SL4350: -22.0 to 122.0F (-30.0 to 50.0C) SL4100: 0.0 to 100.0F (-18.0 to 37.0C)
Temperature Sensor Type	Precise spiral wound bi-metallic strip transducer
Unit Weight	3 lbs
Units/Pkg	1
Warranty	12-Month Limited
