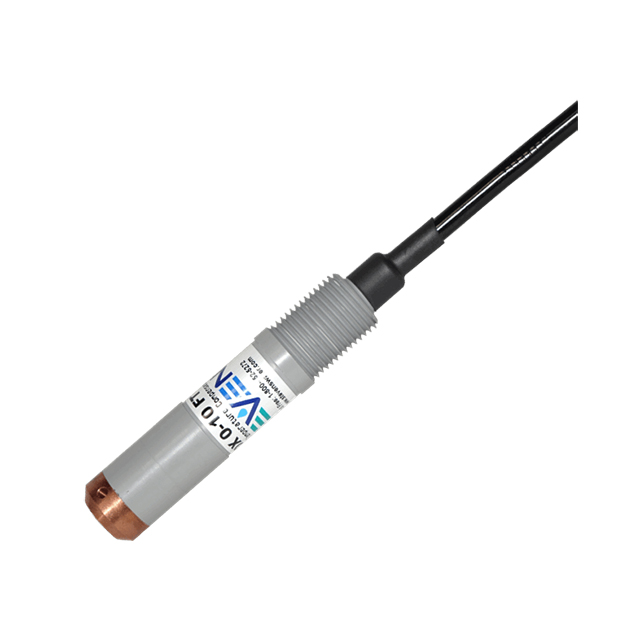

Stevens SDX Analog pressure transducer

Stevens SDX Analog pressure transducer Description：

Datasheet

The Stevens SDX (Submersible Depth Transmitter) is a pressure sensor that delivers accurate results while still remaining very affordable for a wide range of level measurement applications.

High impact, corrosion-resistant PVC Type II housing and potted electronics make the SDX extremely durable for most water and hostile fluid environments. The SDX is also an excellent choice for level measurement applications that may put more expensive sensors at risk for damage.

The SDX comes equipped with user specified vented cable lengths. The vent provides an atmospheric reference for the sensor, which is necessary for ensuring the highest possible accuracy when making a level measurement.

The SDX features one 4-20 mA analog output signal that corresponds linearly to range. Compatible with existing power and data logging instruments, the SDX can easily be deployed for data collection at remote monitoring sites.

The sensor housing integrates pipe threads for securely mounting the SDX into pipes, tanks, or other applications.

Rugged housing and fully potted electronics—not damaged by freezing water

Compact size

Accuracy of ± 0.25% full span

Analog output (4-20 mA)

Vented cable, 2 wire, with drain

Weighted copper nose cone

Optional Desiccant Cartridge

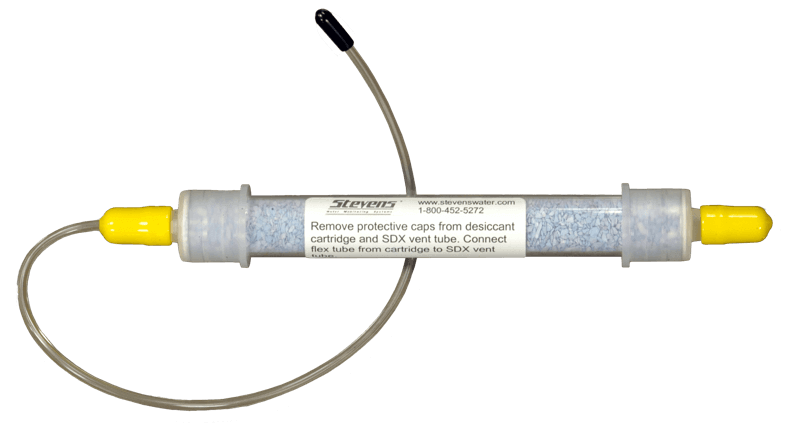

The SDX is a “Wet-Wet” device. While it is important to keep the SDX cable’s vent tube unobstructed for barometric pressure compensation, neither the pressure transducer nor internal electronics are damaged by condensation or moisture entering the vent tube. For best results, Stevens recommends the desiccant cartridge with vent tube adapter.
