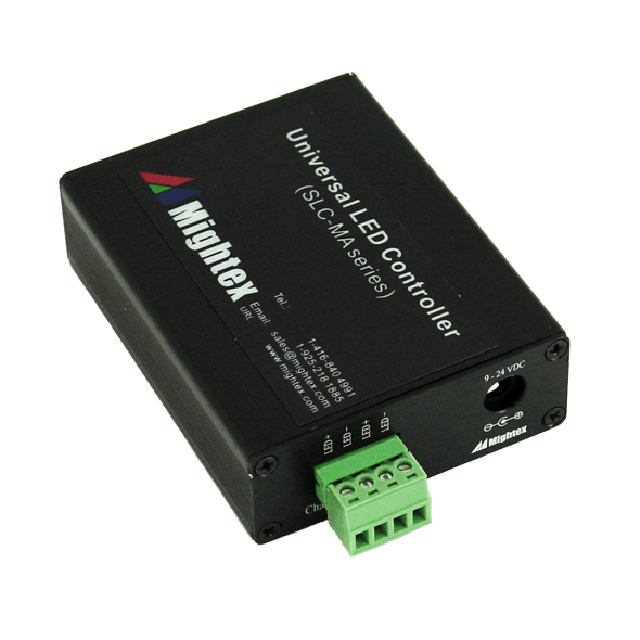

Compact Universal 1- and 2- Channel LED Controllers with Software Control

Compact Universal 1- and 2- Channel LED Controllers with Software Control Description：

Datasheet

Mightex’s Compact 1- and 2- Channel Computer-Controlled Universal LED Drivers are designed to drive a broad range of LED light sources. Each unit comes with a powerful PC-based software with a user-friendly GUI, which enables users to drive LEDs without the need to write any code. In addition, a full-featured SDK is provided, in order for users to write their own software and to integrate Mightex’s LED drivers into their own systems. Furthermore, the drivers have a built-in protection feature, allowing users to limit LED driving current and voltage. Each channel can be individually configured to work under one of the following two modes: Normal Mode (or DC Mode): The output current is a constant, which can be adjusted (using software) from 0 mA to 1,000 mA, through the USB interface; and Strobe Mode: A Pulse-Width-Modulated (or PWM) periodic strobe pattern is output from the channel, which can be turned on by a software trigger. The strobe pattern may last indefinitely or for a preset number of cycles. The frequency of the PWM strobe can be up to 500Hz. In addition, each channel can be individually DISABLED and ENABLED. No voltage or current is output from a DISABLED channel.

Features:

Computer controllable

Universal – suitable for any LED

Dual control modes: DC or Strobe

Compact

User friendly application software with GUI

Capable of driving variable loads

Full-featured SDK

Up to 1,000mA output current

High precision with 1mA current resolution

Applications:

Machine vision

Displays

Microscopy

Semiconductor equipment

Testing instruments

Medical instruments

Lighting

Specifications

1. Maximum Output Voltage is 3V less than the Power Supply Input Voltage. For instance, with a Power Supply Input Voltage of Vdc = 24V, the Maximum Output Voltage Vmax would be (Vdc- 3V) = 21V;
2. If the channel output voltage is Vd and the output current is Id, they must simultaneously satisfy: (1) Vd <= Vmax ; (2) Id <= Imax; and (3) Vd *Id <= Pmax; and
3. Each period of a PWM square wave comprises of ON time and OFF time, i.e. two (2) ‘steps’. The minimum value for each step is 1,000μs, and the minimum increment is 100μs.
4. Proper heat dissipation should be provided to the LED controller in customer’s system in order to prevent over-heating, which may lead to self-shutdown by the LED controller for protection purpose. In addition, the total output current of all channels should not exceed the capacity of the power adapter.
