SP932U Beam Profiling Camera

SP932U beam analysis camera features

User's Manual

1. 2048 x 1536 pixel resolu tion with a 3.45 µm pixel pitch

2. 24 fps at full resolution

3. New "Blooming Correction" algorithm at NIR and no smearing

4. BeamGage Standard or Professional software included

5. Requires Win 10, 64 bit or higher

6. USB 3.0 Silicon CMOS High Resolution Camera with BeamGage

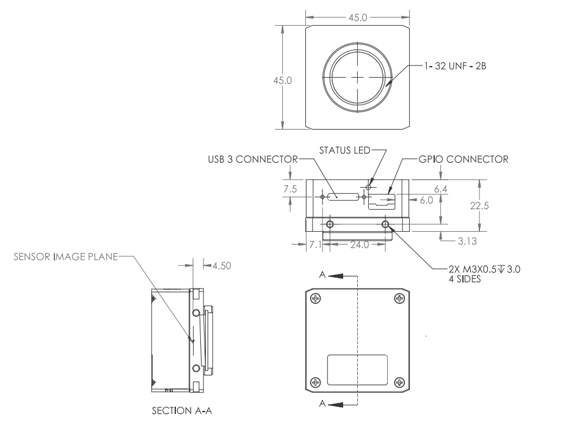

Drawing of SP932U beam analysis camera

SP932U beam analysis camera specifications

SP932U Beam analysis camera often asks questions

What is the advantage of the SP932U camera?

CMOS sensor used in the SP932U camera has an advantage over CCD Ophir cameras due to the possibility of faster measurement speed and lack of Smearing Effect.

Why SP932U camera is the most suitable for NIR wavelengths beam profiling?

SP932U exploits a special mathematical algorithm to remove the "Blooming Effect" at 1000-1100nm. Each camera is specially calibrated to remove the blooming and provide precise beam profiling measurement at popular NIR and Nd: YAG ranges.
