RTD TEMPERATURE & ACCELERATION SENSORS

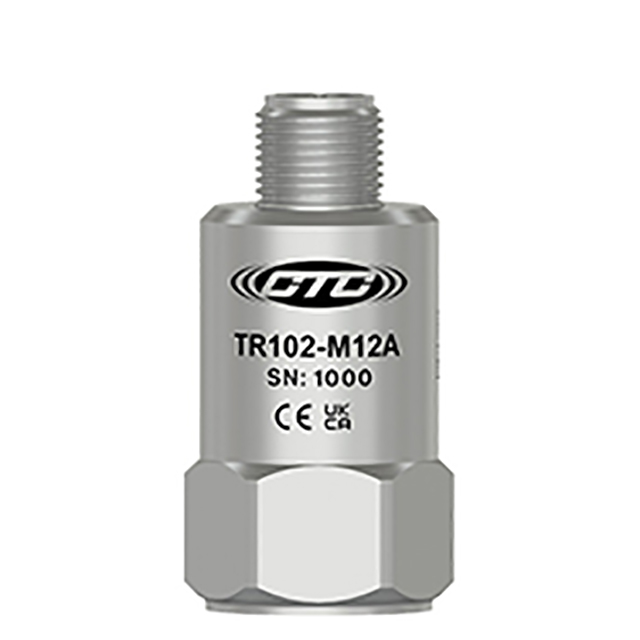

TR102-M12ADatasheet

RTD Sensor, Top Exit 4 Pin M12 Connector, 100 mV/g, ±10%

30-900,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

For use with CTC M4TR Connector & CB123 cabling

TR104-M12ADatasheet

RTD Sensor, Side Exit 4 Pin M12 Connector, 100 mV/g, ±10%

30-300,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

For use with CTC M4TR Connector & CB123 cabling

TR133-M12ADatasheet

RTD Sensor, Top Exit 4 Pin M12 Connector, 500 mV/g, ±10%

6-600,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

For use with CTC M4TR Connector & CB123 cabling

TR134-M12ADatasheet

RTD Sensor, Side Exit 4 Pin M12 Connector, 500 mV/g, ±10%

6-600,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

For use with CTC M4TR Connector & CB123 cabling

TR207-M12ADatasheet

High Temperature RTD Accelerometer, 325 °F (162 °C) Max Temp, Top Exit 4 Pin M12 Connector, 100 mV/g, ±10%

30-750,000 CPM Frequency Response (±3dB)

-58 to 325 °F (-50 to 162 °C) Temperature Range

Welded, Hermetic Sealing

Proven Sensor for Standard High Temperature Applications Resistant to Temperatures Up to 325°F (162°C)

TR208-M12ADatasheet

High Temperature RTD Accelerometer, 325 °F (162 °C) Max Temp, Side Exit 4 Pin M12 Connector, 100 mV/g, ±10%

30-750,000 CPM Frequency Response (±3dB)

-58 to 325 °F (-50 to 162 °C) Temperature Range

Welded, Hermetic Sealing

Proven Sensor for Standard High Temperature Applications Resistant to Temperatures Up to 325°F (162°C)
