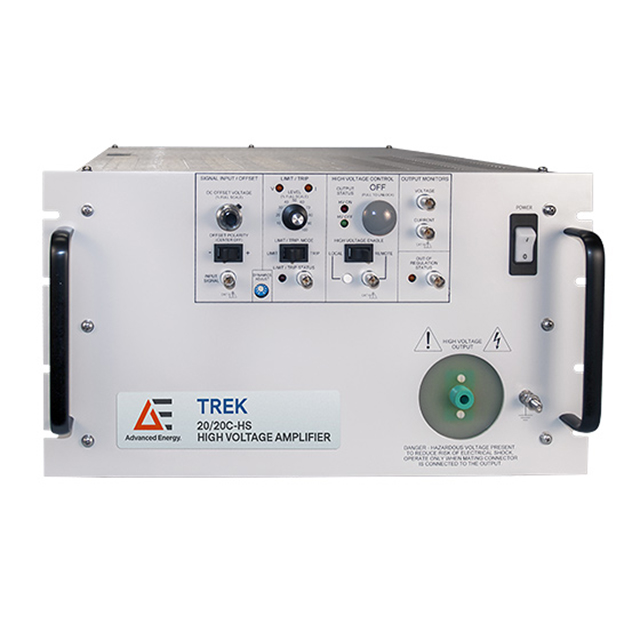

Trek 20/20C Non-Inverting High Voltage Amplifier

Trek 20/20C Non-Inverting High Voltage Amplifier Description：

Datasheet

Meet the demands of highly capacitive or reactive loads. The DC-stable Trek 20/20C high-voltage power amplifier has a four-quadrant, active output stage that is essential to achieve accurate output responses and high slew rates. It sinks or sources the current into reactive or resistive loads throughout the output voltage range. The Trek 20/20C is used in numerous industrial and research applications such as material characterization, ferroelectrics, and atmospheric plasma. Advanced Energy’s Trek 20/20C-HS high voltage amplifier offers three times more peak current, a higher slew rate, and even more bandwidth.

Features

Dynamic adjustment optimizes the AC response for various load parameters

NIST-traceable calibration certificate provided with each unit

DC-stable for programmable supply applications

Local and remote high voltage ON/OFF capabilities

Switch selectable for current limit or trip

Benefits

Drive capacitive loads via a four-quadrant output

Enable high accuracy thanks to a closed-loop system

Safeguard equipment with short-circuit protection

Benefit from maintenance-free operation and solid-state design

Take advantage of low-output noise and ultra-accurate outputs
