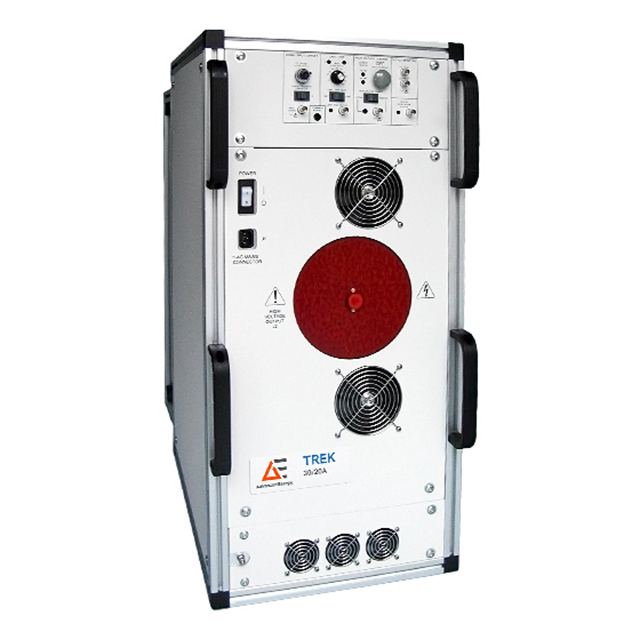

Trek 30/20A Non-Inverting High Voltage Amplifier

Trek 30/20A Non-Inverting High Voltage Amplifier Description：

Datasheet

The high voltage amplifier Trek 30/20A is DC-stable and has an all-solid-state design that enables a high slew rate, wide bandwidth, and low-noise operation. It features a non-inverting fixed gain of 3000 V/V. It is protected against overvoltage and overcurrent conditions generated by active loads or output short circuits to the ground. Precision voltage and current monitors provide low-voltage representations of the high-voltage output and load current for monitoring purposes or feedback signals in a closed-loop system. Achieve accurate output responses and high slew rates demanded by reactive loads via the four-quadrant active output. It sinks or sources the current to reactive or resistive loads throughout the output voltage range.

Features

Settling time (to 1%) is less than 200 µs for a 0 to 30 kV step

Dynamically adjust to optimize AC response for various load parameters

Local and remote high voltage On/Off capabilities

NIST-traceable calibration certificate provided with each unit

Short-circuit protection to safeguard equipment

Benefits

Benefit from a closed-loop system and achieve high accuracy

Take advantage of complete solid-state design and maintenance-free operation

Rely on ultra-accurate outputs thanks to low-output noise

Protect against overvoltage and overcurrent conditions generated by active loads

Drive capacitive loads via a four-quadrant output
